Overview - Front Door Lamps

WARNING: This page is about a different variant/trim than selected.

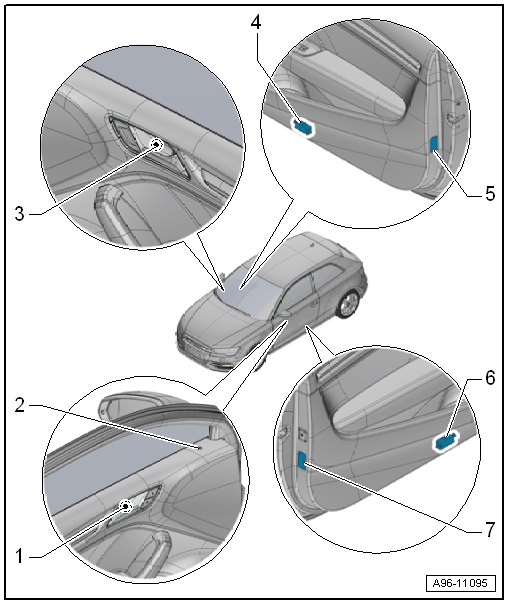

Fig 1: Locating Front Door Lamps

Courtesy of AUDI OF AMERICA, LLC

Driver Door Opener Illumination Bulb -L108-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER DOOR OPENER ILLUMINATION BULB -L108- / -L109-, REMOVING AND INSTALLING .
Central Locking -SAFE- Indicator Lamp -K133-
- Removing and installing. Refer to CENTRAL LOCKING -SAFE- INDICATOR LAMP -K133-, REMOVING AND INSTALLING .
Front Passenger Door Opener Illumination Bulb -L109-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER DOOR OPENER ILLUMINATION BULB -L108- / -L109-, REMOVING AND INSTALLING .
Passenger Side Entry Lamp -W93-
- Removing and installing. Refer to DRIVER/PASSENGER SIDE ENTRY LAMP -W92- / -W93-, REMOVING AND INSTALLING .
Front Passenger Door Warning Lamp -W36-
- 12 V, 3 W
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR WARNING LAMP -W30- / -W36-, REMOVING AND INSTALLING .
Driver Side Entry Lamp -W92-
- Removing and installing. Refer to DRIVER/PASSENGER SIDE ENTRY LAMP -W92- / -W93-, REMOVING AND INSTALLING .
Driver Door Warning Lamp -W30-
- 12 V, 3 W
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR WARNING LAMP -W30- / -W36-, REMOVING AND INSTALLING .
