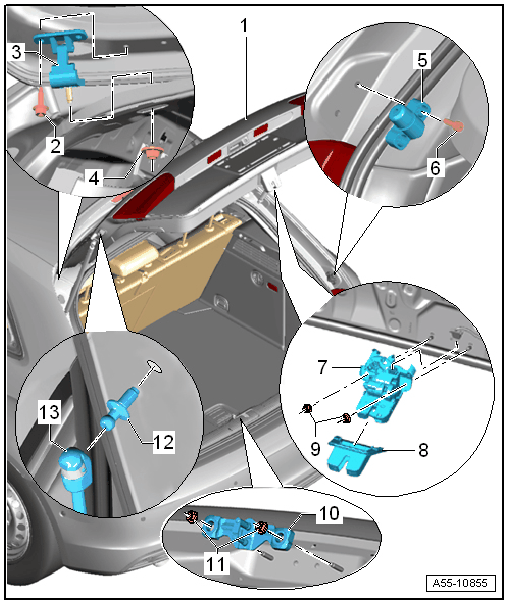

Overview - Rear Lid, A3 And SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Rear Lid
- Removing and installing. Refer to REAR LID, REMOVING AND INSTALLING
- Bolt
- 23 Nm
- Hinge
- Removing and installing. Refer to HINGES, REMOVING AND INSTALLING
- Nut
- 21 Nm
- Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Bolt
- 8 Nm
- Latch
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING
- Rear Lid Latch Cap
- Remove the lid trim panel before removing.
- When installing, the rear lid latch cap must engage audibly.
- Nuts
- 21 Nm
- Striker
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
- Nut
- 21 Nm
- Ball Pin
- 21 Nm
- Gas-Filled Strut
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING.
- Venting. Refer to GAS-FILLED STRUT, VENTING .
