Headlamp Housing Repair Set, Installing: Procedure
WARNING: This page is about a different variant/trim than selected.
-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the rest of the broken tab on the headlamp housing.

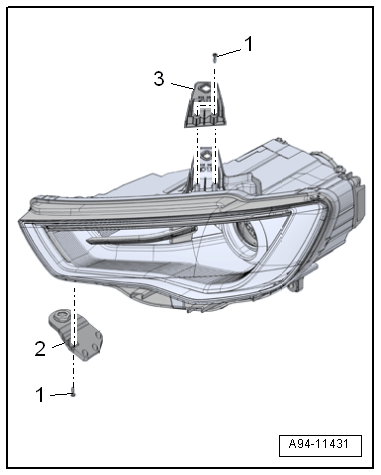

-- Place the mounting tabs -2 or 3- from the repair kit on the headlamp and secure them with the screws -1-.
-- Align the headlamp to the body contour. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
TIGHTENING SPECIFICATIONS
