Overview - Headlamp, Headlamp Housing Repair Set

WARNING: This page is about a different variant/trim than selected.

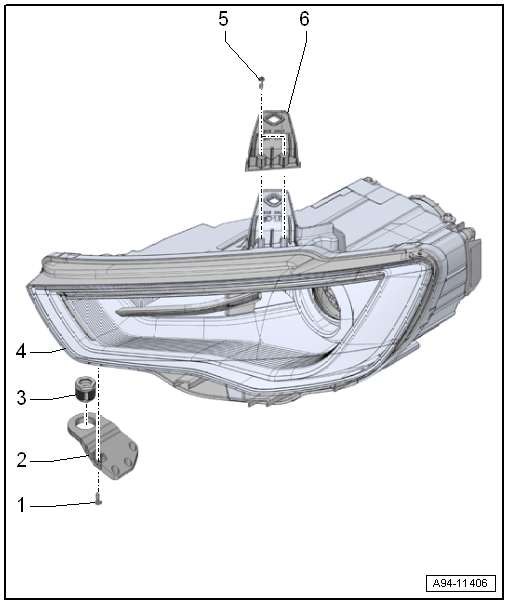

Fig 1: Exploded View Of Headlamps (Headlamp Housing Repair Set)
GWWA94-11406Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 6 Nm
    • Quantity: 2
  2. Inner Tab
  3. Adjusting Nut
    • For the headlamp height adjustment
  4. Headlamps
  5. Bolt
    • 6 Nm
    • Quantity: 2
  6. Upper Tab
