Overview - Impact Member, RS3

WARNING: This page is about a different variant/trim than selected.

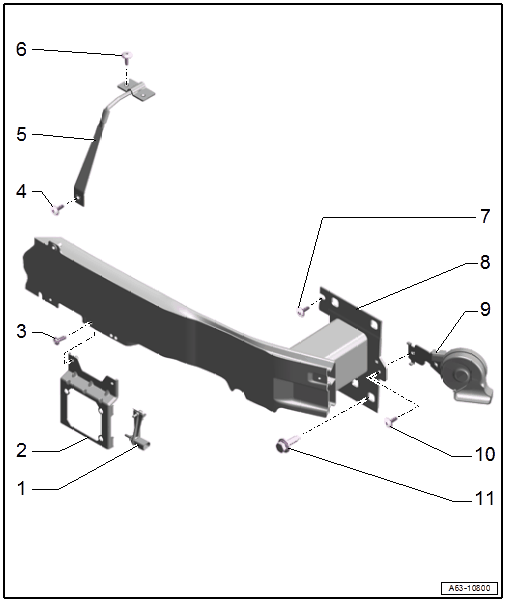

Fig 1: Exploded View Of Impact Member, RS3

Courtesy of AUDI OF AMERICA, LLC

Bracket
- For Outside Air Temperature Sensor -G17-
- Removing and installing. Refer to OUTSIDE AIR TEMPERATURE SENSOR -G17- BRACKET, REMOVING AND INSTALLING
Bracket
- For Distance Regulation Control Module -J428-
Bolt
- Tightening specification. Refer to OVERVIEW - ADAPTIVE CRUISE CONTROL .
Bolt
- Tightening Specification -Item 6) OVERVIEW - HOOD - SCREWS .
Retaining Bracket
- For the hood release lever
Bolt
- Quantity: 2
- Tightening specification -Item 6) OVERVIEW - HOOD - SCREWS .
Bolt
- 4.5 Nm
Impact Member
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM
Bracket
- For the signal horn
- Overview. Refer to OVERVIEW - HORN .
Bolt
- Tightening Specification. Refer to OVERVIEW - HORN .
Bolt
- 50 Nm
- Quantity: 4
