Overview - Bumper Cover, RS3 Sedan

WARNING: This page is about a different variant/trim than selected.

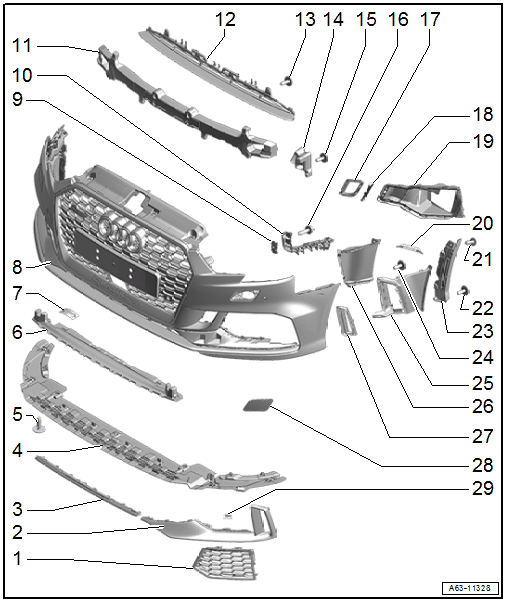

Fig 1: Exploded View Of Bumper Cover (RS3 Sedan)

Courtesy of AUDI OF AMERICA, LLC

Air Intake Grille
- Removing and Installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS3 SEDAN .
Spoiler Lower Section
- Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, RS3 SEDAN .
Cover Strip
- Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING .
Bumper Cover End Plate
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, A3 FROM MY 2017, RS3 SEDAN .
Bolt
- 2 Nm
- Quantity: 3
Lower Molded Foam Part
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, A3 FROM MY 2017, RS3 SEDAN .
Clip
- Quantity: 4
Bumper Cover
- With cover for the towing eye
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Thread Mount
- For the bolt
Mount
- For the bumper cover
- To secure the headlamp
- Overview. Refer to OVERVIEW - FENDER .
Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING, RS3 .
Lower Reinforcement Brace
- Removing and Installing. Refer to LOWER REINFORCEMENT BRACE, REMOVING AND INSTALLING, RS3 SPORTBACK .
Bolt
- 2 Nm
- Quantity: 4
Side Molded Foam Piece
- Secured using a Christmas Tree^™ fastener
Christmas Tree^™ Fastener
Bolt
- 4 Nm
Frame
- For the air intake pipe
Partition Grille
- Removing and Installing. Refer to AIR INTAKE GRILLE TRIM, REMOVING AND INSTALLING, RS3 SEDAN .
Trim
- For the air intake grille
- Removing and Installing. Refer to AIR INTAKE GRILLE TRIM, REMOVING AND INSTALLING, RS3 SEDAN .
Clip
- Quantity: 4
Expanding Rivet
- Quantity: 4
Bolt
- 2 Nm
Mount
- For the side air intake
- Removing and Installing. Refer to SIDE AIR INTAKE TRIM, REMOVING AND INSTALLING, RS3 SEDAN .
Bolt
- 2 Nm
- Quantity: 4
Outer Trim
- For the side air intake
- Removing and Installing. Refer to SIDE AIR INTAKE TRIM, REMOVING AND INSTALLING, RS3 SEDAN .
Inner Trim
- For the side air intake
- Removing and Installing. Refer to SIDE AIR INTAKE TRIM, REMOVING AND INSTALLING, RS3 SEDAN .
Connecting Part
- For the spoiler lower section
- Cannot be ordered separately. Preparing for installation. Refer to Removing .
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Clip
