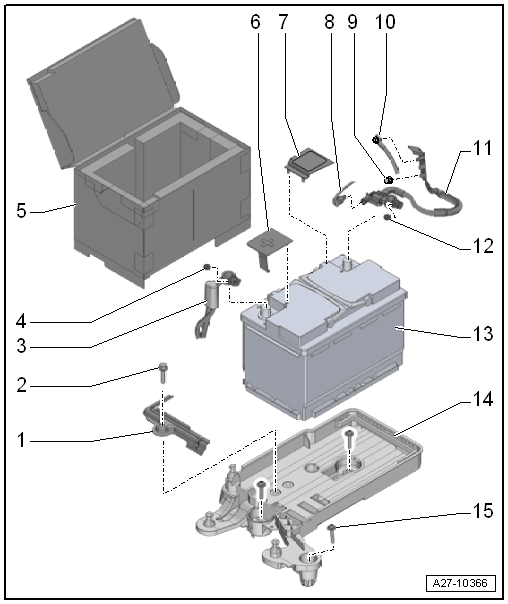

Overview - Battery, Battery In Engine Compartment: Notes
WARNING: This page is about a different variant/trim than selected.
- Retaining Bracket
- Bolt
- 15 Nm
- Positive Cable
- Disconnecting and connecting. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING .
- Nut
- 6 Nm
- Heat Protection Sleeve
- Positive Terminal Cover
- Negative Terminal Cover
- Electrical Wire
- For the Battery Monitoring Control Module -J367-
- Follow the sequence when connecting the ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING, BATTERY IN LUGGAGE COMPARTMENT
- Nut
- Tightening Specification. Refer to Wiring Diagram.
- Ground Cable
- 9 Nm
- Ground Cable
- Market-specific with Battery Monitoring Control Module -J367-
- Disconnecting and connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, ENGINE COMPARTMENT BATTERY .
- Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY .
- Nut
- 6 Nm
- Battery
- Disconnecting and connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, ENGINE COMPARTMENT BATTERY .
- Removing and installing. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING .
- Battery Tray
- For vehicles through 11/2013
- For vehicles from 11/2013. Refer to BATTERY TRAY FROM 11/2013 - TIGHTENING SPECIFICATIONS .
- Removing and Installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Quantity: 3
