Battery Tray From 11/2013 - Tightening Specifications

WARNING: This page is about a different variant/trim than selected.

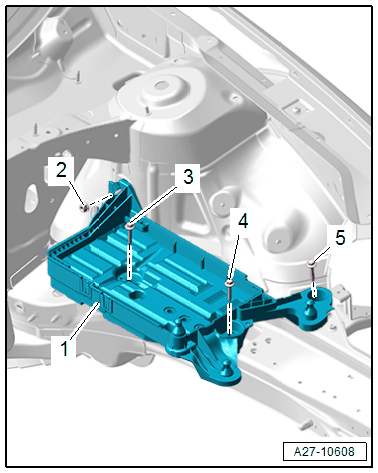

GWWA27-10608Courtesy of AUDI OF AMERICA, LLC
  1. Battery Tray from 11/2013
  2. Nut - 9 Nm
  3. Bolt - Tightening Specification. Refer to OVERVIEW - BATTERY, BATTERY IN ENGINE COMPARTMENT .
  4. Bolt - Tightening Specification. Refer to OVERVIEW - BATTERY, BATTERY IN ENGINE COMPARTMENT .
  5. Bolt - Tightening Specification. Refer to OVERVIEW - BATTERY, BATTERY IN ENGINE COMPARTMENT .
