Overview - Fuel Tank, Vehicles With Front Wheel Drive (Fwd) And Multi-Link Suspension
WARNING: This page is about a different car, the 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

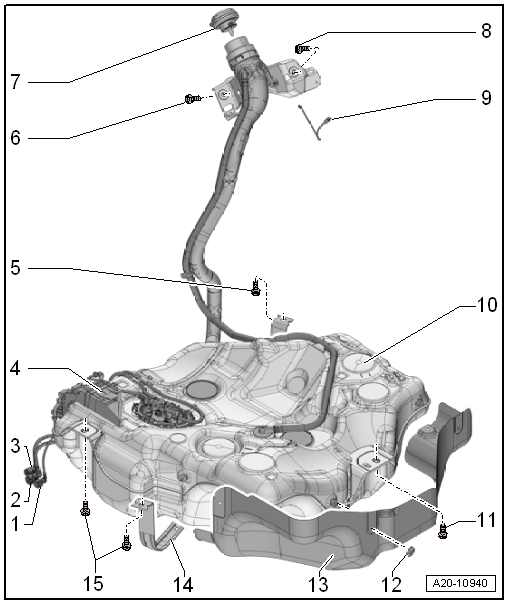

- Fuel Line
- Equipment level with parking heater: from the parking heater metering pump
- Do not kink
- To disconnect, press release button on connection piece.
- Install until it clicks into place
- Press again and pull to make sure the connection is engaged correctly.
- Fuel Supply Line
- To fuel filter
- Clipped to the fuel tank
- Do not kink
- To disconnect, press release button on connection piece.
- Install until it clicks into place
- Press again and pull to make sure the connection is engaged correctly.
- Fuel Return Line
- From engine
- Do not kink
- Clipped to the fuel tank
- To disconnect, press release button on connection piece.
- Install until it clicks into place
- Press again and pull to make sure the connection is engaged correctly.
- Bracket
- For the Fuel Pump Control Module -J538-
- Bolt
- 20 Nm
- Collar bolt for mounting strap must be replaced with a bolt and washer. Refer to the Parts Information.
- Bolt
- 8 Nm
- Cap
- Turn until it clicks and locks.
- Attached to the fuel filler door insert with an permanent fastener
- Bolt
- 8 Nm
- To attach the fuel filler neck
- For discharging electrostatic charge, refer to GROUND CONNECTION, ROUTING AND SECURING TO DISCHARGE ELECTROSTATIC CHARGE .
- Ground Connection
- For fuel filler tube
- For discharging electrostatic charge, refer to GROUND CONNECTION, ROUTING AND SECURING TO DISCHARGE ELECTROSTATIC CHARGE .
- Fuel Tank
- Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Nut
- 2 Nm
- For heat shield
- Heat Shield
- For the fuel tank
- Mounting Strap
- Bolts
- 20 Nm
- Collar bolt for mounting strap must be replaced with a bolt and washer. Refer to the Parts Information.
