Overview - Impact Member

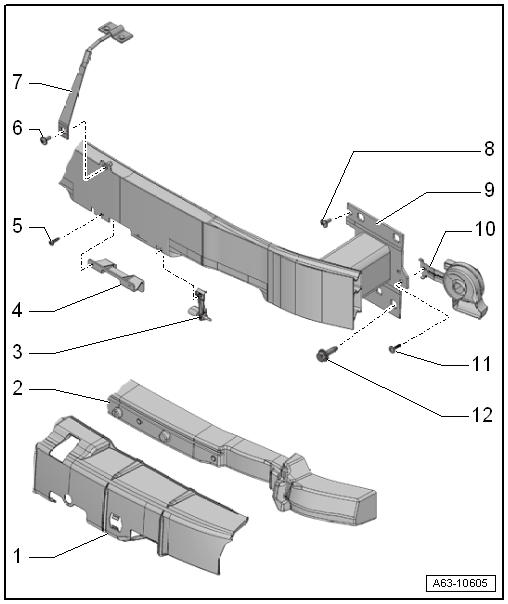

Fig 1: Impact Member Components Location

Courtesy of AUDI OF AMERICA, LLC

Cover
- For impact member
- There are different versions.
Molded Foam Part
- There are different versions.
- Market-Specific Version
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
Bracket
- For Outside Air Temperature Sensor -G17-
- Equipped on some models
- Removing and Installing. Refer to Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING .
Bracket
- For Distance Regulation Control Module -J428-
Bolt
- Tightening specification. Refer to OVERVIEW - ADAPTIVE CRUISE CONTROL .
Bolt
- Quantity: 3
- Tightening specification. Refer to -item 6 OVERVIEW - HOOD - Bolts.
Retaining Bracket
- For the hood release lever
Bolt
- 4.5 Nm
Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
Bracket
- For the horn
- Overview. Refer to OVERVIEW - HORN .
Bolt
- Tightening specification. Refer to OVERVIEW - HORN .
Bolt
- 50 Nm
- Quantity: 4
