Component Location Overview - Seat Versions

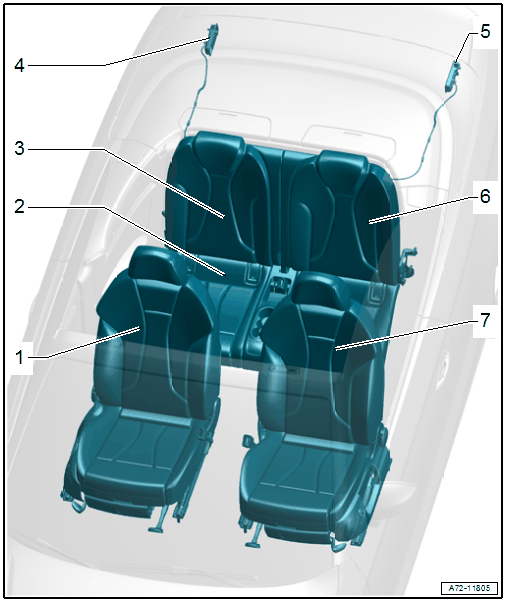

Fig 1: Seats Components Location (Seat Versions)

GWWA72-11805

Courtesy of AUDI OF AMERICA, LLC

Front Passenger Seat
Standard seat/sport seat
- Vehicles with:
  - Fabric
  - Leather
  - Seat and backrest heating
  - Lumbar Support
  - Storage compartment
  - Child Seat Anchor
  - Footwell lamp
  - Head area heater
  - Seat angle adjuster, Sport seat
  - Seat depth adjuster, Sport seat
- Overview, refer to OVERVIEW - FRONT SEAT
Bench Seat
Standard seat/sport seat
- Vehicles with:
  - Fabric
  - Leather
- Overview, refer to OVERVIEW - SEAT BENCH/SINGLE SEAT
Right Rear Seat Backrest
Standard seat/sport seat
- Vehicles with:
  - Fabric
  - Leather
- Overview, refer to OVERVIEW - REAR SEAT BACKREST
Right Rear Backrest Release
- Overview, refer to OVERVIEW - RETAINER
Left Rear Backrest Release
- Overview, refer to OVERVIEW - RETAINER
Left Rear Seat Backrest
Standard seat/sport seat
- Vehicles with:
  - Fabric
  - Leather
- Overview, refer to OVERVIEW - REAR SEAT BACKREST
Driver Seat
Standard seat/sport seat
- Vehicles with:
  - Fabric
  - Leather
  - Seat and backrest heating
  - Lumbar Support
  - Storage compartment
  - Footwell lamp
  - Head area heater
  - Seat angle adjuster, Sport seat
  - Seat depth adjuster, Sport seat
- Overview, refer to OVERVIEW - FRONT SEAT
