Overview - Rear Seat Backrest

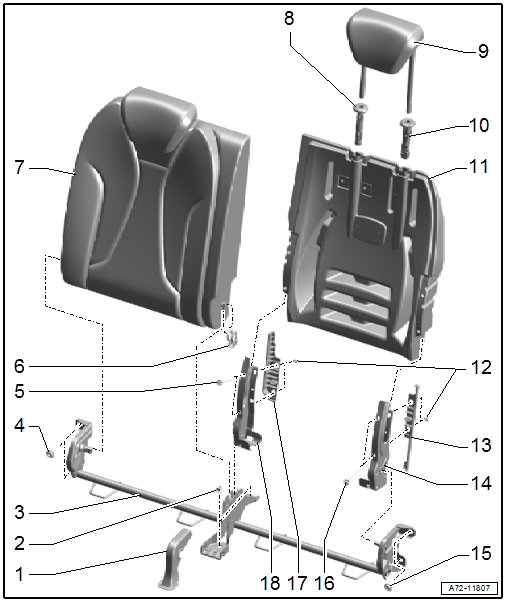

Fig 1: Exploded View Of Rear Seat Backrest
GWWA72-11807Courtesy of AUDI OF AMERICA, LLC
  1. Cover
  2. Nut
    • 45 Nm
    • Quantity: 2
  3. Backrest Frame
  4. Bolt
    • 32 Nm
    • Quantity: 2
  5. Bolt
    • Quantity: 2
  6. Clip
  7. Rear Seat Backrest
  8. Headrest Guide
    • With locking spring
    • Always installed on the rear seat backrest on the right side
    • Cannot be removed without damaging it
    • Removing and installing, refer to HEADREST GUIDE, REMOVING AND INSTALLING .
    • The guide tab must engage in the mount cut-out on the headrest guide
    • Pushed in until the retainers engage properly
  9. Headrest
  10. Headrest Guide
    • With the headrest height adjustment button
    • Always installed on the rear seat backrest on the left side
    • Cannot be removed without damaging it
    • Removing and installing, refer to HEADREST GUIDE, REMOVING AND INSTALLING .
    • The guide tab must engage in the mount cut-out on the headrest guide
    • Pushed in until the retainers engage properly
  11. Backrest Shell
  12. Nut
    • 6.6 Nm
    • Quantity: 4
  13. Outer Spacer
  14. Outer Backrest Hinge
  15. Bolt
    • 32 Nm
    • Quantity: 2
  16. Bolt
    • Quantity: 2
  17. Inner Spacer
  18. Inner Backrest Hinge
