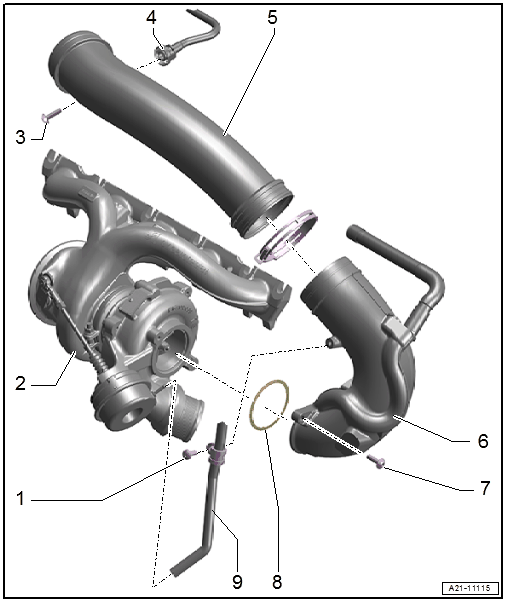

Part 2
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Part 1. Refer to Part 1 .
- Bolt
- 9 Nm
- Turbocharger
- One unit with the exhaust manifold
- Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Line
- For the crankcase ventilation
- Air Duct Pipe
- Air Duct Pipe
- Bolt
- 9 Nm
- Seal
- Replace after removing.
- Clip to the air duct pipe
- Vacuum Line
