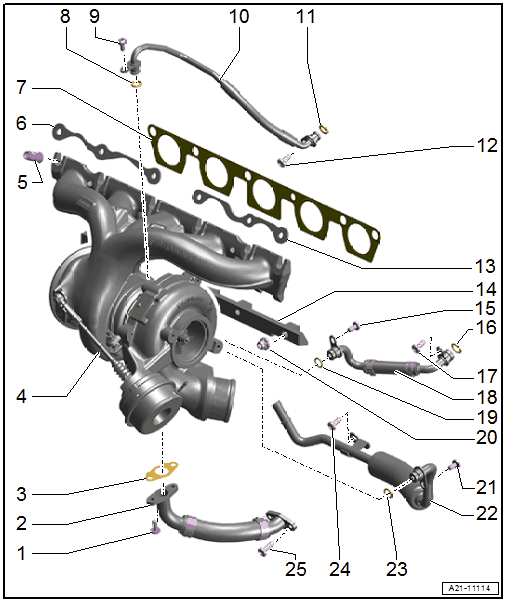

1. Bolt
   • 9 Nm
2. Oil Return Line
3. Gasket
   • Replace after removing.
4. Turbocharger
   • One unit with the exhaust manifold
   • Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
5. Nut

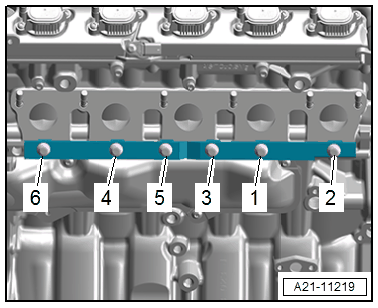

   • Tightening specification and sequence. Refer to Figure.
6. Retaining Plate
7. Gasket
   • Replace after removing.
8. O-Ring
   • Replace after removing.
9. Bolt
   • 9 Nm
10. Oil Supply Line
11. O-Ring
    • Replace after removing.
12. Bolt
    • 9 Nm
13. Retaining Plate
14. Tensioning Bracket
    • Remains installed when removing the turbocharger
15. Bolt
    • 9 Nm
16. O-Ring
    • Replace after removing.
17. Bolt
    • 9 Nm
18. Coolant Supply Line
19. O-Ring
    • Replace after removing.
20. Nut
    • Tightening specification and sequence. Refer to Figure.
    • Replace after removing.
21. Bolt
    • 9 Nm
22. Coolant Return Line
23. O-Ring
    • Replace after removing.
24. Bolt
    • 9 Nm
25. Bolt
    • 9 Nm
