Overview - Lock Carrier

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

On vehicles with distance regulation (ACC), note the following.

If the lock carrier is removed and installed or if changes are made to the >>ACC<< bracket, the distance regulation must be calibrated. Refer to ADAPTIVE CRUISE CONTROL, GENERAL INFORMATION and ADAPTIVE CRUISE CONTROL, CALIBRATING .

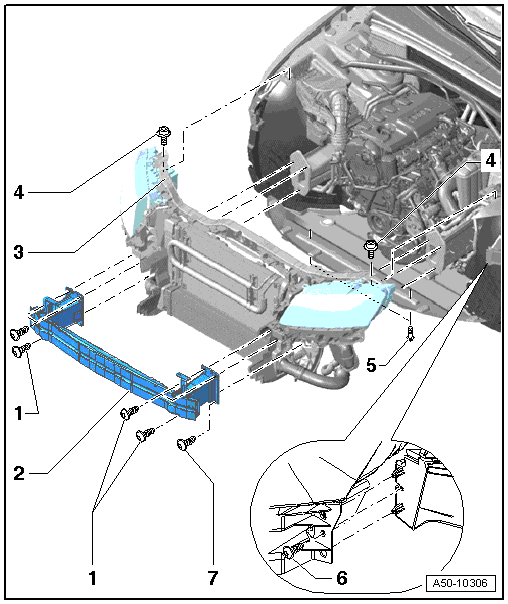

Fig 1: Identifying Lock Carrier With Attachments Assembly

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification: 55 Nm
- 3 pieces per side.
Impact Member
- Secured on the lock carrier with a bolt -7-
- Do not remove with the bracket when removing the lock carrier.
Lock Carrier
NOTE:
The radiator coolant must be drained before removal. Refer to COOLANT SYSTEM/COOLANT .
- Removing:
- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
  -- Remove front bumper. Refer to BUMPER COVER, REMOVING AND INSTALLING .

  -- Disconnect all electrical wires and hoses to the lock carrier at the connection points.

  -- Disconnect the cable for the hood lock from the coupling. Refer to OVERVIEW - RELEASE CABLE .

  -- Remove bolts -5-.

  -- Remove the bolts -1- on the longitudinal member (quantity: 3 per side).

  NOTE:
  The impact absorbers with the brackets are secured to the lock carrier with one bolt each -1- and must not be removed.

  -- Remove the bolts -6- on the lower lock carrier.

  -- Remove the lock carrier with the headlamps forward.
- Install in reverse order of removal.
- Adjust the headlamps after installing.
Bolt
- Tightening specification: 5 Nm
Bolt
- Tightening specification: 1.5 Nm
Bolt
- Tightening specification: 4 Nm
- Secures the impact bar to the lock carrier.
