Overview - Bumper Cover, AUDI RS5

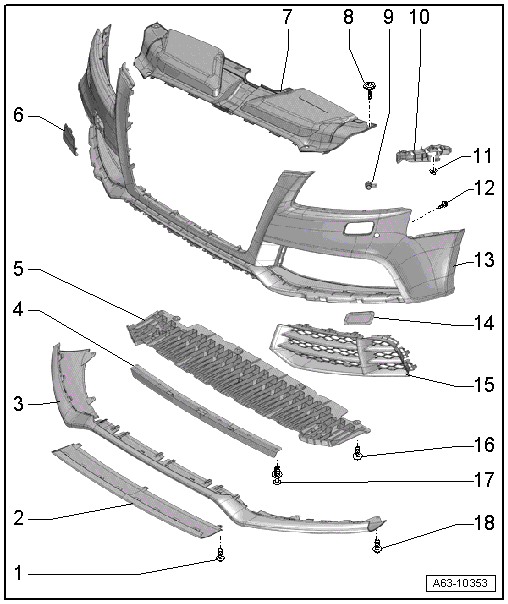

Fig 1: Exploded View Of Bumper Cover, Audi RS5

1. Bolt
   • 2 Nm
   • Quantity: 3
2. Spoiler Lower Section
   • Removing and installing. Refer to Installing => Spoiler Lower Section .
3. Spoiler Upper Section
   • Removing and installing. Refer to Installing => Spoiler Upper Section .
4. Spoiler Lip
   • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING, AUDI RS5 => Spoiler Lip .
5. Front Bumper Cover Noise Insulation
   • Removing and installing. Refer to Installing => Bumper Cover End Plate .
6. Cover
   • For the towing hook
7. Lock Carrier Cover
   • Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
8. Bolt
   • There are different versions. Refer to the Parts Catalog.
   • Quantity: 4
   • Tightening specification and sequence. Refer to Fig 2.
9. Front Parking Aid Sensor
   • Removing and Installing. Refer to Parking Aid .
10. Front Bumper Cover Mount
    • Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
11. Nut
    • 4 Nm
    • Quantity: 4
12. Bolt
    • 4 Nm
    • Quantity: 4
13. Front Bumper Cover
    • Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .
14. Cover
    • For headlamp washer system spray nozzle
15. Air Intake Grille
    • Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS5 .
16. Bolt
    • 5 Nm
    • Quantity: 4
17. Expanding Rivet
    • Quantity: 4
18. Bolt
    • 2 Nm
    • Quantity: 2

Lock Carrier Cover - Tightening Specification and Sequence

Fig 2: Front Lock Carrier Cover

-- Tighten the bolts in the following order to 3 Nm -2, 3, 5, 1- .
