Hydraulic Fluid Cooler, Removing And Installing, RS Models: Removing

-- Turn off the ignition.

-- Remove The Front Bumper Cover. Refer to OVERVIEW - BUMPER COVER, AUDI RS5 /FRONT BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .

-- Disconnect the connector -A- from the A/C Pressure/Temperature Sensor -G395- -B- and free up the wire.

Fig 1: Disconnecting Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

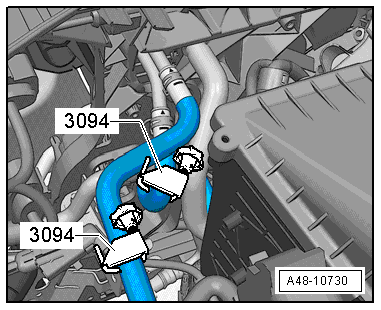

-- Clamp off the hydraulic lines with :3094  .

Fig 2: Clamping Hydraulic Lines With 3094

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clamps -1-.

Fig 3: Identifying Markings -2- On Hose Line Must Point Upward In 12 O'clock Position

Courtesy of AUDI OF AMERICA, LLC

-- Remove the hydraulic lines from the hydraulic fluid cooler.

-- Open the retainers in direction of -arrows A- and remove the left air guide -1- in direction of -arrow B-.

Fig 4: Locating Left & Right Air Duct Tabs

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and the hydraulic fluid cooler -1-.

Fig 5: Identifying Hydraulic Fluid Cooler -1- & Bolts -2-

Courtesy of AUDI OF AMERICA, LLC
