Overview - Front Seat Belt Latch

WARNING: This page is about a different variant/trim than selected.

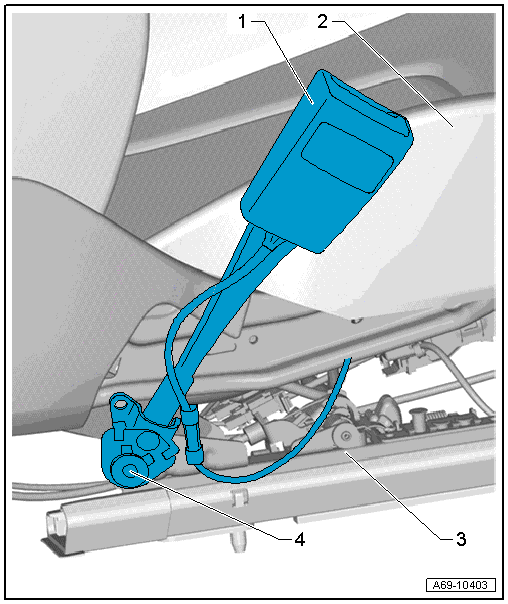

Fig 1: Exploded View Of Front Seat Belt Latch
GWWA69-10403Courtesy of AUDI OF AMERICA, LLC
  1. Front Seat Belt Latch
    • Driver side: with Driver Seat Belt Switch -E24-
    • Passenger side: With Front Passenger Seat Belt Switch -E25- (depending on the market; belt latch version not illustrated)
    • Removing and installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Installed position. Refer to Installing
    • Always replaced if the belt tensioner has deployed with the belt on
  2. Front Seat
  3. Seat Frame
  4. Bolt
    • 33 Nm
    • Always replace
    • Allocation. Refer to the Parts Information.
