Guide Frame Tightening Sequence And Specifications

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Glide track -Item 1) OVERVIEW - TIMING MECHANISM DRIVE CHAIN for the timing mechanism drive chain is removed.
The oil filter is removed.

NOTE:

Replace Any Bolts That Were Tightened With An Additional Turn.

-- Insert The Long Bolts In The Interior And The Short Bolts In The Exterior.

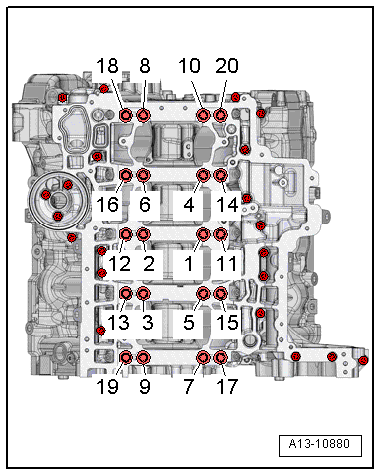

-- Tighten The Bolts In Steps In The Sequence Shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 through 10-	30 Nm
2.	-11 to 20-	30 Nm
3.	-1 through 10-	50 Nm
4.	-1 through 10-	Tighten an additional 90°
5.	-11 to 20-	50 Nm
6.	-11 to 20-	Tighten an additional 90°
7.	without numbering in the illustration	9 Nm diagonally
