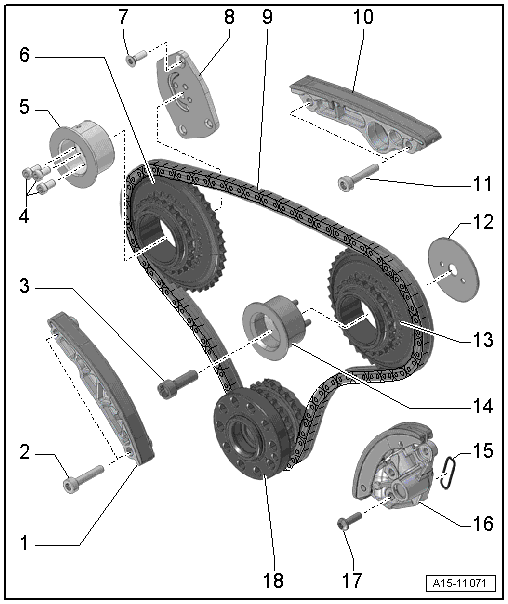

Overview - Timing Mechanism Drive Chain
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- Guide Rail
- Bolt
- 17 Nm + 90°
- Always replace
- Bolt
- Tightening specification -Item 5- OVERVIEW - CAMSHAFT TIMING CHAINS.
- Bolts
- Tightening specification -Item 13- OVERVIEW - CAMSHAFT TIMING CHAINS.
- Mounting Pin
- Left camshaft timing chain drive sprocket
- Drive Chain Sprocket
- For the left camshaft control chain
- Bolt
- Tightening specification -Item 10- OVERVIEW - CAMSHAFT TIMING CHAINS.
- Bearing Plate
- Left camshaft timing chain drive sprocket
- Asymmetrical version
- Drive Chain
- For timing mechanism
- Before removing, mark the direction of rotation with paint
- Removing and installing. Refer to TIMING MECHANISM DRIVE CHAIN, REMOVING AND INSTALLING .
- Guide Rail
- Bolt
- 17 Nm + 90°
- Always replace
- Thrust Washer
- Asymmetrical version
- Installed position.
- Drive Chain Sprocket
- For the right camshaft timing chain
- Mounting Pin
- For the right camshaft timing chain drive sprocket
- Asymmetrical version
- Installed position.
- Seal
- Always replace
- Chain Tensioner
- Bolt
- 5 Nm + 90°
- Always replace
- Crankshaft
