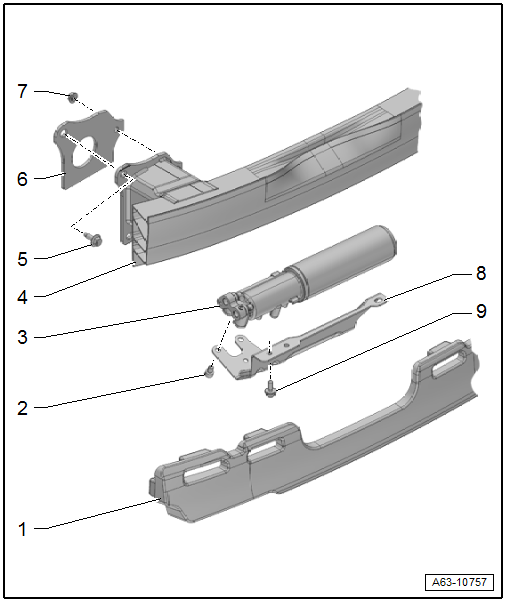

Overview - Impact Member, AUDI RS6
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to OVERVIEW - CENTRAL VALVE . .
- Central Valve
- For electronic damping
- Removing and installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING . .
- Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, AUDI RS6 .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure.
- Foam Seal
- Replace if damaged
- Nut
- 23 Nm + 90°
- Replace after removing.
- Retaining Bracket
- For central valve
- Bolt
- Quantity: 3
- Tightening sequence. Refer to OVERVIEW - CENTRAL VALVE .
