Component Location Overview - Electric And Electronic Components

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

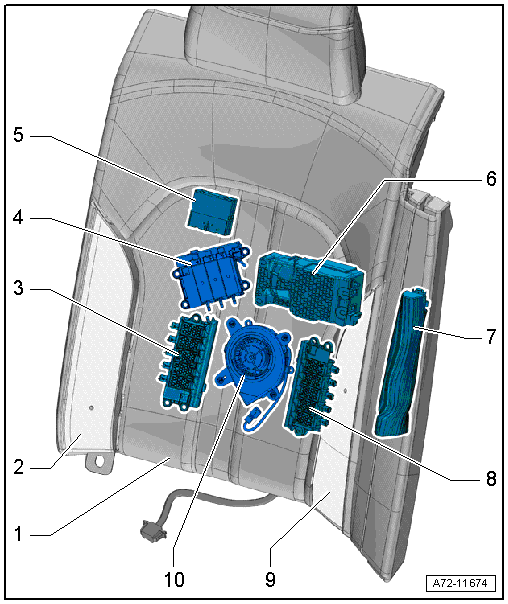

Left Rear Backrest Heating Element -Z11-
- Front passenger side: Right Rear Backrest Heating Element -Z13-
- Allocation. Refer to the Parts information.
- Heating element sewn into backrest cover; if faulty, replace backrest cover. Refer to COVER AND CUSHION, SEPARATING .
Driver Side Rear Seat Right Backrest Bolster Heating Element -Z87-
- Front passenger side: Passenger Side Rear Seat Right Backrest Bolster Heating Element -Z91-
- Allocation. Refer to the Parts information.
- Heating element, removing and installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
Valve Block 3 In Driver Side Rear Seat -N525-
- For massage mat
- Front passenger side: Valve Block 3 In Passenger Side Rear Seat -N526-
- Allocation. Refer to the Parts information.
- Removing and installing. Refer to MASSAGE MAT VALVE BLOCK, REMOVING AND INSTALLING .
Valve Block 1 in Driver Side Rear Seat -N479-
- Front passenger side: Valve Block 1 in Passenger Side Rear Seat -N481-
- Allocation. Refer to the Parts information.
- Removing and installing. Refer to Valve Block 1 in Driver Side Rear Seat -N479- /Valve Block 1 in Passenger Side Rear Seat -N481-, REMOVING AND INSTALLING .
Driver Side Rear Seat Adjustment Control Module -J876-
- Front passenger side: Passenger Side Rear Seat Adjustment Control Module -J877-
- Allocation. Refer to the Parts information.
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL MODULE, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
- Press on until it engages audibly
Left Rear Multi-contour Seat Compressor -V441- with the Integrated Driver Side Rear Multi-contour Seat Control Module -J875-
- Front passenger side Right Rear Multi-contour Seat Compressor -V442- with the integrated Passenger Side Rear Multi-contour Seat Control Module -J874-
- Allocation. Refer to the Parts information.
- Removing and installing. Refer to COMPRESSOR WITH MULTI-CONTOUR SEAT CONTROL MODULE, REMOVING AND INSTALLING .
Rear Side Airbag with Driver Side Rear Thorax Airbag Igniter -N201-
- Front passenger side: rear side airbag with Passenger Side Rear Thorax Airbag Igniter -N202-
  WARNING:
  Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Overview. Refer to OVERVIEW - REAR SIDE AIRBAG, MARKET-SPECIFIC .
Valve Block 2 in Driver Side Rear Seat -N480-
- For massage mat
- Front passenger side: Valve Block 2 in Passenger Side Rear Seat -N482-
- Allocation. Refer to the Parts information.
- Removing and installing. Refer to MASSAGE MAT VALVE BLOCK, REMOVING AND INSTALLING .
Driver Side Rear Seat Left Backrest Bolster Heating Element -Z86-
- Front passenger side: Passenger Side Rear Seat Left Backrest Bolster Heating Element -Z90-
- Allocation. Refer to the Parts information.
- Heating element, removing and installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
Left Rear Seat Backrest Blower Fan -V273-
- Front passenger side: Right Rear Seat Backrest Blower Fan -V272-
- Allocation. Refer to the Parts information.
- Removing and installing. Refer to REAR SEAT BACKREST FAN, REMOVING AND INSTALLING .
