Section 74 (Body Panel System - Exterior Body Panels): General Description: Specification: Front
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

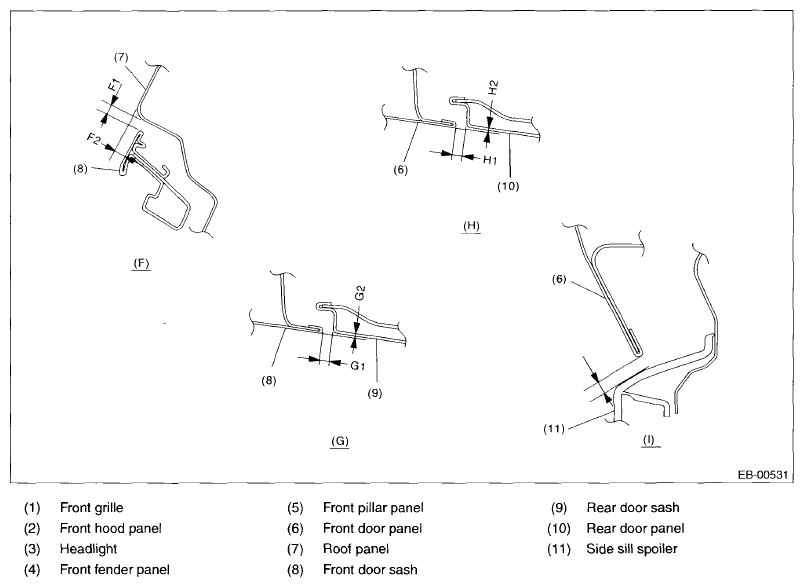

FRONT BODY PANEL GAPS REFERENCE CHART
| Section | Part | Standard |
|---|---|---|
| (A) | Front hood panel to Front grille | A1: 2.2±1.0 mm (0.09±0.04 in) A2: 7.7±1.0 mm (0.30±0.04 in) |
| (B) | Front hood panel to Headlight | 5.6±1.0 mm(0.22±0.04 in) |
| (C) | Front hood panel to Front fender panel | C1-a: 3.5±1.0 mm (0.14±0.04 in) C1-b: 4.5±1.0 mm (0.18±0.04 in) C2: -0.5, +0.5 - -1.0 mm (-0.02 +0.02 - -0.04 in) |
| (D) | Front fender panel to Front pillar panel | D1: 3.0±.1.0 mm (0.12±0.04 in) D2: 0±1.0 mm (0±0.04 in) |
| (E) | Front fender panel to Front door panel | E1: 4.0±.1.0 mm (0.16±0.04 in) E2: 0+1.0, -0.5 mm (0+0.04, -0.02 in) |
| (F) | Roof panel to Front door sash | F1: 5.Q±.1.0 mm (0.20±0.04 in) F2: 3.8±1.0 mm (0.15±0.04 in) |
| (G) | Front door sash to Rear door sash | G1: 5.5±1.0 mm (0.22±0.04 in) G2: 0+1.0, -0.5 mm (0+0.04, -0.02 in) |
| (H) | Front door panel to Rear door panel | H1: 4.5±1.0 mm (0.18±0.04 in) H2: 0+1.0, -0.5 mm (0+0.04, -0.02 in) |
| (I) | Front door panel to Side sill spoiler | 6.0±.1.0 mm (0.24±0.04 in) |
NOTE:
For surface level gap between sunroof lid and roof panel, refer to "Adjustment" of "SUNROOF". < Ref. to
ADJUSTMENT
, Sunroof Lid. >
