Clutch System, Bleeding: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi S5, 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, and 2009 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Bleed the system after working on the hydraulic clutch mechanism.

Make sure no brake fluid gets on the transmission when performing the following work.

First open the bleeder screw, before switching on the bleeder unit.

Before bleeding, you must bring clutch pedal back to rest position and fill the brake fluid reservoir to "max" mark with brake fluid.

Change the fluid for the clutch system at the same interval when changing the brake fluid for the brake system.

-- Connect the VAS 5234, but do not switch on. Refer to BRAKE SYSTEM, BLEEDING .

--If equipped, remove the rear noise insulation by loosening the fasteners -2- and -3-.

Fig 1: Identifying Noise Insulation Components

Courtesy of AUDI OF AMERICA, LLC

-- Connect the bleeder hose -A- to the clutch slave cylinder and open the bleeder screw -arrow-.

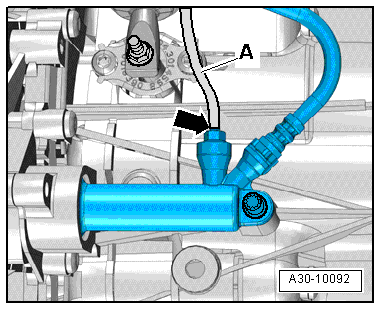

Fig 2: Clutch Slave Cylinder Bleeder Screw

Courtesy of AUDI OF AMERICA, LLC

-- Connect the bleeder hose with collector bottle vacuum hose.

-- Switch on the brake filler/bleeder unit and bleed approximately 100 cm³ of brake fluid.

Working pressure 2.0 bar

NOTE:

Make sure the bleeder hose fits correctly.

-- Close the bleeder screw. Tightening specification; refer to CLUTCH HYDRAULICS OVERVIEW .

-- Press the clutch pedal a few times after bleeding the system.

-- Bleed the system again if necessary.

-- Install the rear noise insulation. Refer to NOISE INSULATION .
