Overview - Electro-Drive Drive Motor
WARNING: This page is about a different car, the 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

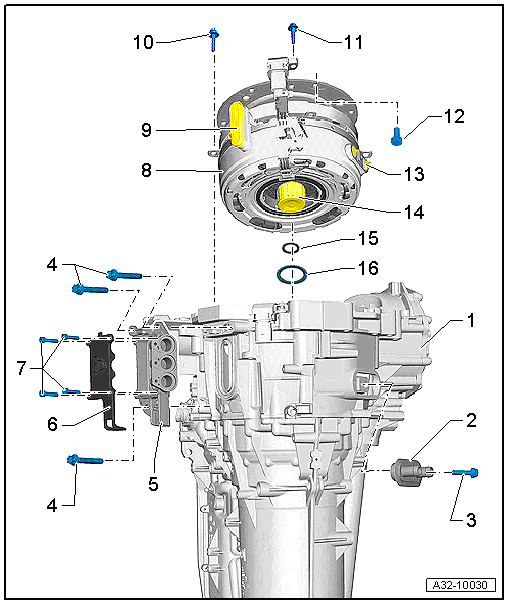

- Transmission Housing
- Electro-Drive Drive Motor -V141- Coolant Line Connections
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Housing for High Voltage Connection Box
- High voltage connections on the Electro-Drive Drive Motor -V141-
- Coding the high voltage cable on the Electro-Drive Drive Motor -V141-, refer to HIGH VOLTAGE CABLE IDENTIFICATION .
- High Voltage Connection Box Cover
- Replace the seal on the connection box cover
- Removing and Installing, refer to DRIVE MOTOR HIGH VOLTAGE WIRING HARNESS, REMOVING AND INSTALLING .
- Bolt
- Tightening specification: 7.5 Nm .
- Electro-Drive Drive Motor -V141-
- Removing and installing, refer to ELECTRIC DRIVE MOTOR, REMOVING AND INSTALLING
- Check the Electro-Drive Drive Motor -V141- hub, refer to ELECTRO-DRIVE DRIVE MOTOR HUB, CHECKING .
- High Voltage Connection Cap
- Use when removing and installing the Electro-Drive Drive Motor -V141-.
- Bolt
- 10 Nm +75° turn
- Replacing
- Bolt
- 10 Nm
- Bolt
- 60 Nm
- Replacing
- Three piece Electro-Drive Drive Motor -V141- mounting on the drive plate
- Tightening sequence: Tighten the bolts to 10 Nm in the sequence.
- Coolant Line Connection Cap
- Use when removing and installing the Electro-Drive Drive Motor -V141-.
- Transmission Connection Cap
- Use after removing the Electro-Drive Drive Motor -V141-.
- Remove before installing the Electro-Drive Drive Motor -V141-.
- O-Ring
- For the input shaft
- Replacing
- Shaft Seal
- For the Electro-Drive Drive Motor -V141-
Removing and installing, refer to ELECTRO-DRIVE DRIVE MOTOR SEAL, REMOVING AND INSTALLING
- For the Electro-Drive Drive Motor -V141-
