Release Cable

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

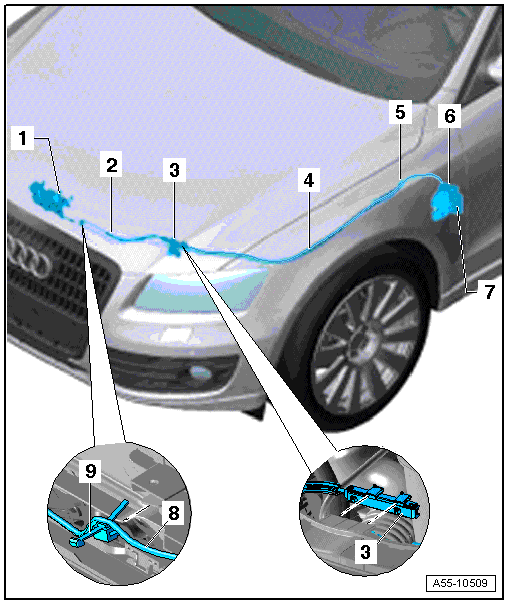

Fig 1: Identifying Hood Lock Cable Assembly

Courtesy of AUDI OF AMERICA, LLC

Hood Latch
- Removing and Installing. Refer to CABLE COUPLING .
- To adjust hood, slide up or down.
Hood Cable
- Removing:
  -- Disconnect the release cable at the coupling. refer to CABLE COUPLING .

  -- Disengage the release cable from the bracket -7-.

  -- Pull the release cable through to the engine compartment.
- Installing: install in reverse order of removal
Cable Coupling
-- Slide the coupling clamp sideways onto the bracket -8- on the lock carrier.

-- Disconnect the release cable here before removing the lock carrier and release lever.
Hood Lock Rear Cable
- Release cable to the operating lever in the vehicle interior.
Grommet
- Make sure it fits correctly when installing.
Release Lever
- Disengage the release cable, refer to HOOD RELEASE LEVER, REMOVING .
Hood Lock Release Lever
- Operating lever cover, removing. Refer to RELEASE LEVER COVER, REMOVING .
Wire
- Pull the electrical wire and the lid lock cable through the lock carrier as shown.
Cable Tie
