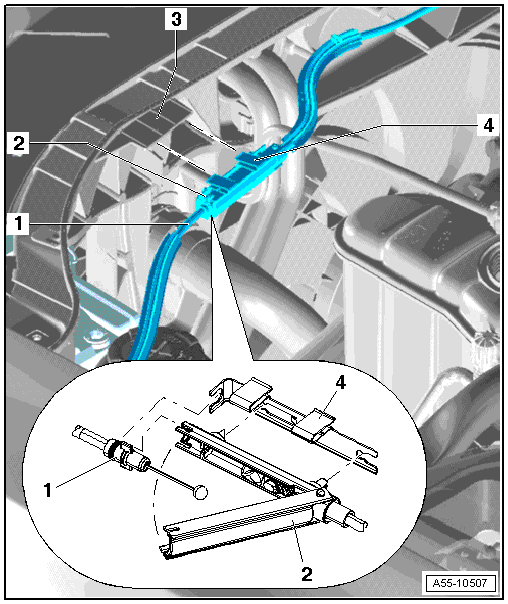

Cable Coupling
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Cable
- Cable to the operating lever
- When removing, pull back out of the coupling.
- Front Cable with Coupling
- To release, remove the clamp from the lock carrier and pull the cable back slightly out of the clamp.
- Fold the coupling up and lift the front cable with the nipple out of the coupling.
- Lock Carrier
- Clamp
- Slide sideways onto the lock carrier after installing the cable.
