Cable, Attaching In Hood Lock
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

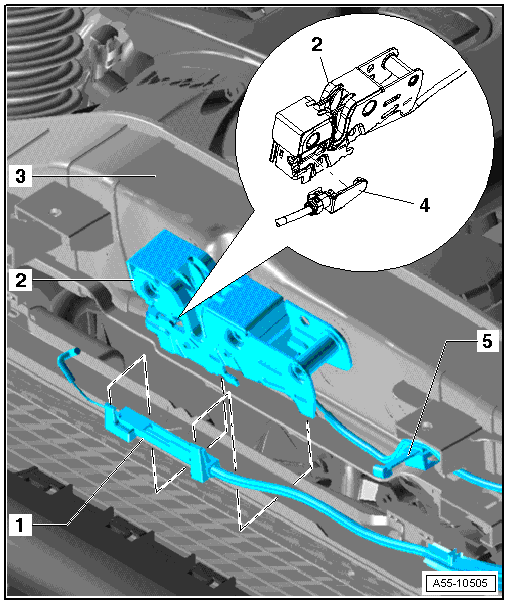

- Front Release Cable
- Insert the cable nipple in the operating lever in the hood lock. Refer to RELEASE CABLE, ENGAGING IN HOOD LOCK .
- Install the cable and guide onto the hood lock from underneath.
- Hood Latch
- Engage the release cable guide in the lower part of the hood lock.
- Lock Carrier
- Release Cable
- Only for RHD
- Cable Tie
- Secure the wire and cable to the lock carrier with a cable tie.
