Overview - Timing Chain Cover

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

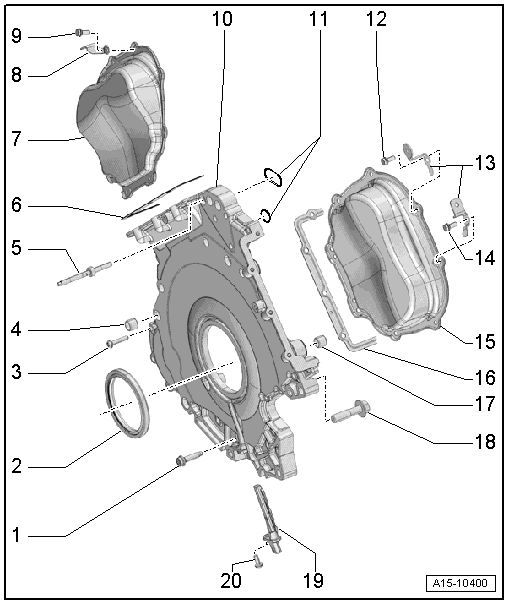

Fig 1: Identifying Timing Chain Covers Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification and sequence, refer to Fig 4.
Crankshaft Shaft Seal, Transmission Side
- Replacing, refer to CRANKSHAFT SEAL, REPLACING, TRANSMISSION SIDE .
Bolt
- Tightening specification and sequence, refer to Fig 4.
Alignment Sleeve
- Quantity: 2
Bolt
- Tightening specification: 16 Nm
Left Cylinder Head Gasket
Left Timing Chain Cover
- Removing and installing, refer to LEFT AND RIGHT TIMING CHAIN COVERS, REMOVING AND INSTALLING .
Bracket
- For wiring harness
Bolt
- Replace
- Tightening specification and sequence, refer to Fig 2.
Lower Timing Chain Cover
- Removing and installing, refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
Seals
- Replace
Bolt
- Tightening specification and sequence, refer to Fig 3.
Bracket
- For the connectors
Bolt
- Replace
- Tightening specification and sequence, refer to Fig 3.
Right Timing Chain Cover
- Removing and installing, refer to LEFT AND RIGHT TIMING CHAIN COVERS, REMOVING AND INSTALLING .
Right Cylinder Head Gasket
Alignment Sleeve
- Quantity: 2
Bolt
- Tightening specification and sequence, refer to Fig 4.
Engine Speed Sensor -G28-
- Removing and installing, refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 9 Nm.

Fig 2: Identifying Sequence Of Left Timing Chain Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the bolts for the left timing chain cover.

-- Tighten bolts in 2 stages in -1 to 8- sequence as follows:-- Tighten to 5 Nm-- Tighten an additional 90°.

Fig 3: Identifying Sequence Of Right Timing Chain Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the bolts for the right timing chain cover.

-- Tighten bolts in 2 stages in -1 to 8- sequence as follows:-- Tighten to 5 Nm-- Tighten an additional 90°.

Fig 4: Identifying Lower Timing Chain Cover Bolt Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts in six stages as follows:-- Insert the bolts -arrows- and tighten them to 5 Nm.-- Tighten the bolts -1 to 10- in a diagonal sequence to 9 Nm.-- Tighten the bolts -arrows- to 9 Nm.-- Tighten the bolts -8, 9 and 10- to 22 Nm.-- Tighten the bolt -3- to 16 Nm.-- Tighten the bolt -6- to 70 Nm.
