Camshaft Timing Chain, Removing And Installing: Installing

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Crankshaft Holder 3242

Courtesy of AUDI OF AMERICA, LLC

Secure crankshaft -1- in "TDC" position using Locking Pin For Crankshaft T40237.

Tightening specifications:

Refer to OVERVIEW - CAMSHAFT TIMING CHAIN .
Refer to OVERVIEW - OIL PAN/OIL PUMP, OIL PAN UPPER SECTION .

NOTE:

Replace the locking bolt seal for the "TDC" marking.

Replace any bolts that were tightened with an additional turn.

-- Check whether camshafts of both cylinder heads stand in "TDC" position.

Fig 2: Identifying Camshaft Adjustment Pins T40060 (Right Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

It must be possible to secure the camshafts with the Camshaft Adjustment Pins T40060.
The bolt -arrow- in the Camshaft Adjustment Pins T40060 must be perpendicular to the center line of the camshaft on cylinder bank 1 (right).

The bolt -arrow- in the Camshaft Adjustment Pins T40060 must be perpendicular to the center line of the camshaft on cylinder bank 2 (left).

Fig 3: Identifying Camshaft Adjustment Pins (Left Cylinder Head)
Courtesy of AUDI OF AMERICA, LLC

-- Remove the Camshaft Adjustment Pins T40060 from both camshafts.

Fig 4: Identifying Camshaft Correction Tool T40061

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging valves and piston crowns.

If camshafts are rotated, the crankshaft may not rest with any piston at "TDC".

NOTE:

If the camshafts are not secured, it is possible to correct them slightly with the Camshaft Correction Tool T40061 by installing the camshaft chain sprocket on the camshaft.

-- Install the left chain sprocket with the camshaft timing chain.

Fig 5: Installing Camshaft Chain Sprocket (Left Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

The slots in the camshaft chain sprocket must be at the middle position in relation to the threaded holes in the camshaft.

-- Next, loosely install two bolts -1- for the camshaft chain sprocket.

It must still be possible to rotate the camshaft chain sprocket on the camshaft and it must not tip.

-- Secure the left camshaft with the Camshaft Adjustment Pins T40060.

The bolt -arrow- in the Camshaft Adjustment Pins T40060 must be perpendicular to the center axis of the camshaft.

-- Install the right camshaft chain sprocket with the camshaft timing chain.

Fig 6: Installing Right Camshaft Chain Sprocket

Courtesy of AUDI OF AMERICA, LLC

The slots in the camshaft chain sprocket must be at the middle position in relation to the threaded holes in the camshaft.

-- Next, loosely install two bolts -1- for the camshaft chain sprocket.

It must still be possible to rotate the camshaft chain sprocket on the camshaft and it must not tip.

-- Secure the right camshaft with the Camshaft Adjustment Pins T40060.

The bolt -arrow- in the Camshaft Adjustment Pins T40060 must be perpendicular to the center axis of the camshaft.

-- Secure the tensioning rail and the guide pins -2-.

Fig 7: Identifying Pin T40316

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Pin T40316 -1- from the securing hole, thereby releasing the right chain tensioner.

-- Loosen the bolts -2-.

Fig 8: Identifying Bolts, Balance Shaft And Diesel Injection Pump Locking Pin 3359

Courtesy of AUDI OF AMERICA, LLC

-- Stop the balance shaft -3- with the Diesel Injection Pump Locking Pin 3359 as shown in the illustration.

NOTE:

Remove the bolts if necessary and move the balance shaft into position.

-- Loosely install the bolts -2-.

It must still be possible to rotate the chain sprocket -1- on the balance shaft and it must not tip.

-- Have a 2nd technician tension the right camshaft chain sprocket clockwise -arrow- with the Chain Sprocket Tensioner T40062 and the torque wrench to 20 Nm and maintain the pretension.

Fig 9: Identifying Bolts And Chain Sprocket Tensioner T40062

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1 and 2- to the right camshaft chain sprocket.

-- Continue to maintain the pretension and tighten the bolts -1- to the right camshaft chain sprocket.

Fig 10: Installing Camshaft Chain Sprocket (Left Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -2- for the chain sprocket -1- for the balance shaft -3-.

Fig 11: Identifying Bolts, Balance Shaft And Diesel Injection Pump Locking Pin 3359

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Diesel Injection Pump Locking Pin 3359, Chain Sprocket Tensioner T40062 and Camshaft Adjustment Pins T40060.

-- Tighten the remaining bolts for the left and right camshaft chain sprocket.

-- Remove the Crankshaft Holder 3242.

Fig 12: Crankshaft Holder 3242

Courtesy of AUDI OF AMERICA, LLC

Checking the Valve Timing

-- Remove the Crankshaft Holder 3242.

CAUTION:

Components could be damaged by the camshaft timing chain jumping off.

Only rotate the crankshaft in the direction of engine rotation.

-- Turn the crankshaft two turn until the crankshaft is just in front of "TDC".

Fig 13: Identifying Crankshaft Key Tool T40049

Courtesy of AUDI OF AMERICA, LLC

-- Lock the crankshaft -1- from turning using the Crankshaft Key 3242 to 20 Nm.

Fig 14: Crankshaft Holder 3242

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

An inaccurate "TDC" setting will cause an inaccurate setting.

If the crankshaft was turned past "TDC" : Turn the crankshaft again 2 turns until it is just in front of "TDC". Then use the Crankshaft Holder 3242 to keep crankshaft from turning.

-- Check whether camshafts of both cylinder heads stand in "TDC" position.

Fig 15: Installing Camshaft Adjustment Pins T40060

Courtesy of AUDI OF AMERICA, LLC

It must be possible to secure the camshafts with the Camshaft Adjustment Pins T40060.
The bolt -arrow- in the Camshaft Adjustment Pins T40060 must be perpendicular to the center line of the camshaft on cylinder bank 1 (right).

The bolt -arrow- in the Camshaft Adjustment Pins T40060 must be perpendicular to the center line of the camshaft on cylinder bank 2 (left).

Fig 16: Installing Camshaft Adjustment Pins T40060 (Left Cylinder Head)
Courtesy of AUDI OF AMERICA, LLC

Correcting the Valve Timing

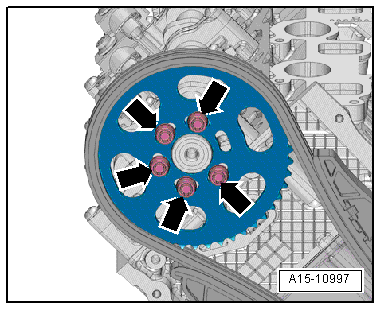

Fig 17: Camshaft Sprocket Bolts (Left Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

-- If one of the camshafts does not lock, loosen all the bolts -arrows- for that particular camshaft chain sprocket about 1 turn.

-- Mount the Camshaft Correction Tool T40061 over the bolt heads.

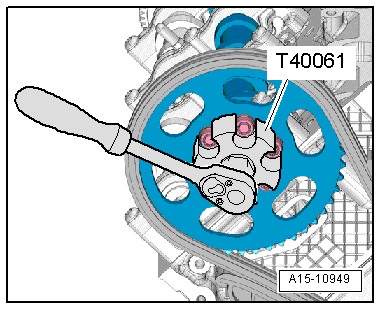

Fig 18: Identifying Camshaft Correction Tool T40061

Courtesy of AUDI OF AMERICA, LLC

-- Turn the camshaft by the Camshaft Correction Tool T40061 just a little back and forth until it is possible to insert the Camshaft Adjustment Pins T40060.

The bolt -arrow- in the Camshaft Adjustment Pins T40060 must be perpendicular to the center axis of the camshaft.

Fig 19: Installing Camshaft Adjustment Pins T40060 (Left Cylinder Head)
Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts for the camshaft chain sprocket with the Camshaft Correction Tool T40061 and the Camshaft Adjustment Pins T40060 still attached to approximately 5 Nm.

-- Remove the Camshaft Adjustment Pins T40060 and the Camshaft Correction Tool T40061.

-- Tighten the camshaft chain sprocket bolts to final torque.

-- Repeat the procedure on the other cylinder bank if necessary.

-- Remove the Crankshaft Holder 3242.

-- Check the valve timing once again, refer to INSTALLING - "Checking the Valve Timing " (See Fig 13).

The rest of the installation is performed in reverse order of removal, noting the following:

-- Install the timing chain cover lower section, refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
