Spoiler Trim Strip, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

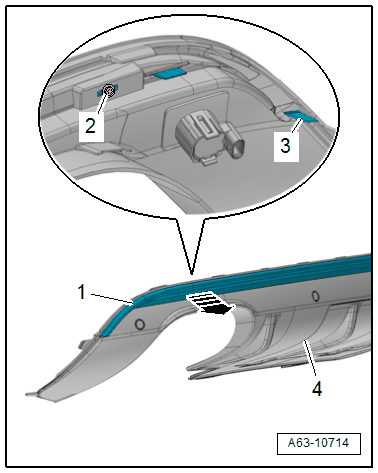

Fig 1: View Of Attachment Points Spoiler Trim Strip
GWWA63-10714Courtesy of AUDI OF AMERICA, LLC

-- Remove the spoiler. Refer to SPOILER .

-- Remove the bolts -2-.

-- Release the retainer -3- and press the trim molding -1- off the bumper cover spoiler -4- using the wedge T10383 -arrow-.
