Power Steering Pump, Removing And Installing, Vehicles With Dynamic Steering: Notes

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with 4-Cylinder TFSI Engine

Special tools and workshop equipment required

Hose Clamps - Up To 25 mm 3094
Hose Clip Pliers VAG1275A
Torque Wrench 1331 5-50Nm VAG1331
Tool insert AF 17 VAG1331/6
Used Oil Collection and Extraction Unit SMN372500
Shop Crane - Drip Tray VAS6208
Torque Wrench 1410 Insert - Accessory Kit VAG1410/1
Torque Wrench 1410 VAG1410
Counterhold - Multiple Use T10172A with Adapter T10172/5
Engine Bung Set VAS6122

Power Steering Pump, Removing and Installing, Vehicles with 4-Cylinder TFSI Engine and Vehicles with Dynamic Steering, refer to REMOVING .

Overview - Power Steering Pump, Vehicles with Dynamic Steering

NOTE:

Replace seals.

Do not reuse fluid you have drained.

Only use Hydraulic Fluid.

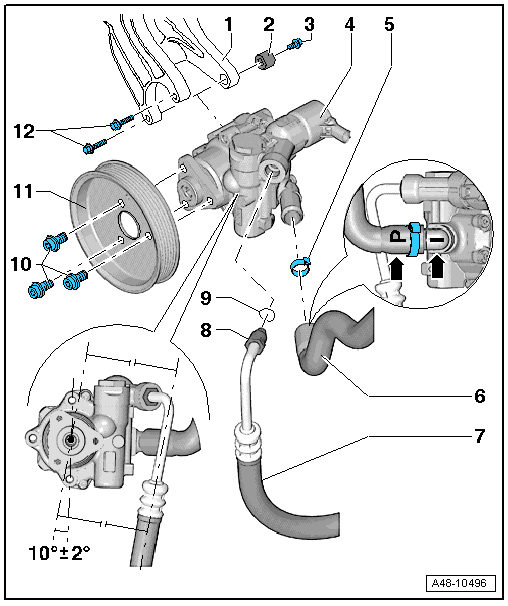

Fig 1: Power Steering Pump Overview, With Dynamic Steering

Courtesy of AUDI OF AMERICA, LLC

Bracket
Sleeve
- Drive the sleeve back slightly to install the power steering pump.
Bolt
- 20 Nm
Power Steering Pump -V119-
- With power steering pump regulator valve
- The power steering pump and the control valve are one component and can only be replaced together.
- Allocation, refer to parts.
- Fill with Hydraulic Fluid before installing
- Delivery pressure, checking, refer to POWER STEERING PUMP, CHECKING DELIVERY PRESSURE .
- Removing and installing, refer to REMOVING .
- Bleed the steering, refer to STEERING, BLEEDING AFTER REPLACING .
- Check hydraulic fluid level, refer to POWER STEERING FLUID LEVEL, CHECKING .
- Steering System, checking for leaks, refer to STEERING, CHECKING FOR LEAKS .
Clamp
- Tension using Hose Clip Pliers VAG1275A, refer to Figure
- Always replace if removed
Suction Hose
- The "P" marking on the suction hose -arrow- must align with the formed seam -arrow- on the power steering pump.
Pressure Line
CAUTION:
- Insert the pressure line completely when installing.
- Note the installation position: the angle between the line connection and the power steering pump axle is approximately 10°.
Union Nut
- 38 Nm
Seal
- Always replace if removed
Bolt
- 20 Nm
- To loosen and tighten, use the Torque Wrench 1410 Insert - Accessory Kit VAG1410/1
Belt pulley
Bolt
- 20 Nm
