Oil Pan Upper Section, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

The engine is secured to the Engine and Transmission Holder, refer to ENGINE, SECURING ON ENGINE AND TRANSMISSION HOLDER .

-- Remove the lower timing chain cover, refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the oil pump, refer to OIL PUMP, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the oil baffle downward.

Fig 1: Locating Oil Baffle Bolts

Courtesy of AUDI OF AMERICA, LLC

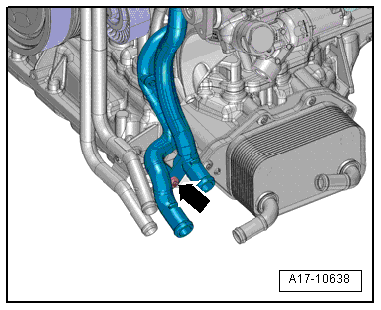

-- Remove the bolt -arrow- from the left coolant pipes.

Fig 2: Identifying Bolt -Arrow- To Left Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 to 6- for the upper section of the oil pan.

-- Carefully loosen the oil pan upper section from the bond and press it off the cylinder block alignment bushings.
