Transmission Identification

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi S5, 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, and 2009 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Allocation Audi A4: .

Allocation Audi A5: ENGINE CODES, TRANSMISSION ALLOCATIONS, RATIOS AND CAPACITIES .

Location on Transmission

Code, serial number and transmission part number -arrow-

Fig 1: Identifying Transmission
Courtesy of AUDI OF AMERICA, LLC

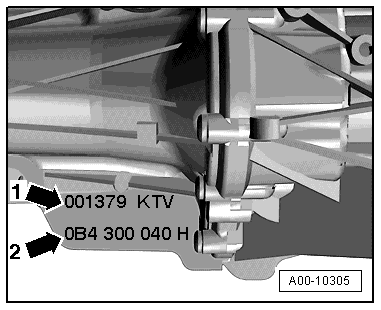

Fig 2: Transmission Code Letters and Serial Number -Arrow 1-

Courtesy of AUDI OF AMERICA, LLC

Example:	001379	KTV
	Serial number	Identification codes

Manual Transmission "0B4" with Transmission Part Number, for Example 0B4 300 040 H -arrow 2-.

NOTE:

The transmission code is also listed on the vehicle data label.
