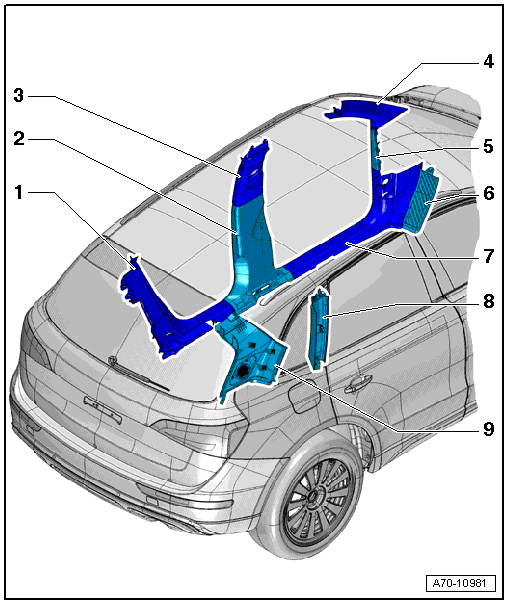

Component Location Overview - Passenger Compartment Trim
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Sill Panel Trim
- Overview. Refer to OVERVIEW - SILL PANEL STRIP, REAR SILL PANEL STRIP .
- Lower B-Pillar Trim Panel
- Overview. Refer to OVERVIEW - B-PILLAR TRIM PANEL .
- Upper B-Pillar Trim Panel
- Overview. Refer to OVERVIEW - B-PILLAR TRIM PANEL .
- Upper A-Pillar Trim Panel
- Overview. Refer to OVERVIEW - A-PILLAR TRIM PANEL .
- A-Pillar Gap Cover
- Overview. Refer to OVERVIEW - SILL PANEL STRIP, FRONT SILL PANEL STRIP .
- Footrest/Floor Covering
- Overview. Refer to OVERVIEW - FOOT REST AND CARPET .
- Front Sill Panel Trim
- Overview. Refer to OVERVIEW - SILL PANEL STRIP, FRONT SILL PANEL STRIP .
- C-pillar Trim
- Overview. Refer to OVERVIEW - C-PILLAR TRIM PANEL .
- D-Pillar Trim
- Overview. Refer to OVERVIEW - D-PILLAR TRIM PANEL .
