Oil pump, lower section of oil pan, component overview: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Audi S4, 2008 Audi S4, 2007 Audi S4, 2006 Audi S4, and 2005 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

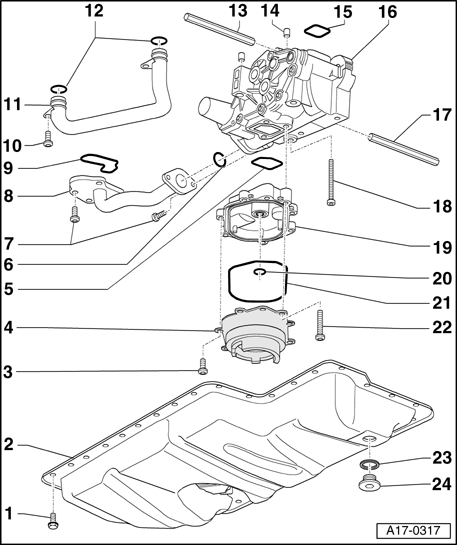

Fig 1: Oil Pump, Lower Section Of Oil Pan, Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 10 Nm

2 - Oil pan (lower section)

Removing and installing → Oil pan (lower part), removing and installing
With Oil Level Thermal Sensor G266
Oil Level Thermal Sensor G266 , removing and installing → Oil Level Thermal Sensor G266 , removing and installing

3 - 10 Nm

4 - Intake tube

With oil strainer

5 - Seal

Replace

6 - O-ring

Replace

7 - 10 Nm

8 - Oil pipe

9 - Seal

Replace

10 - 10 Nm

11 - Oil pipe

12 - O-rings

Replace

13 - Drive shaft for coolant pump

14 - Fitting sleeves

2 pieces

15 - Seal

Replace

16 - Oil pump

Do not disassemble
With relief valve approx. 4 bar
Removing and installing → Oil pump, removing and installing

17 - Drive shaft for oil pump

18 - 10 Nm

19 - Housing for intake tube

20 - O-ring

Replace

21 - Seal

Replace

22 - 10 Nm

23 - Seal

Replace

24 - Oil drain plug - 50 Nm
