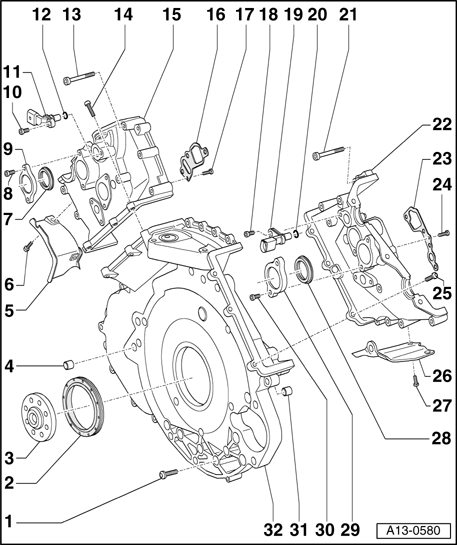

Timing chains covers, component overview
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Audi S4, 2008 Audi S4, 2007 Audi S4, 2006 Audi S4, and 2005 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
1 - M6 - 10 Nm; M8 - 22 Nm
- Note tightening sequence Position lower cover for timing chain and tighten bolts as follows. under Installing
2 - Seal
- for crankshaft - timing chain side
- Removing and installing → Crankshaft seal (timing chain side), replacing
3 - Shim
- For vehicles with automatic transmission
- Mark for re-installation
4 - Alignment bushing
- 2 pieces
5 - Heat shield
6 - 10 Nm
7 - Seal
- Replace
8 - 10 Nm
9 - Sealing flange
10 - 10 Nm
11 - Camshaft position (CMP) sensor 2 G163
12 - O-ring
- Replace
13 - 10 Nm
- Note tightening sequence Position left cover for timing chain and tighten bolts as follows. under Installing
14 - 10 Nm
- Note tightening sequence Position left cover for timing chain and tighten bolts as follows. under Installing
15 - Left timing chain cover
16 - Gasket
- Replace
17 - 4 Nm
- Insert using locking compound; locking compound .
18 - 10 Nm
19 - Camshaft Position (CMP) sensor G40
20 - O-ring
- Replace
21 - 10 Nm
- Note tightening sequence Position right cover for timing chain and tighten bolts as follows. under Installing
22 - Right timing chain cover
23 - Gasket
- Replace
24 - 4 Nm
- Insert using locking compound; locking compound .
25 - 10 Nm
- Note tightening sequence Position right cover for timing chain and tighten bolts as follows. under Installing
26 - Heat shield
27 - 10 Nm
28 - Seal
- Replace
29 - Sealing flange
30 - 10 Nm
31 - Alignment bushing
- 2 pieces
32 - Lower timing chain cover
