Overview - Rear Center Three-Point Seat Belt
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Both folding and fixed rear seat backrests are shown in the illustrations.

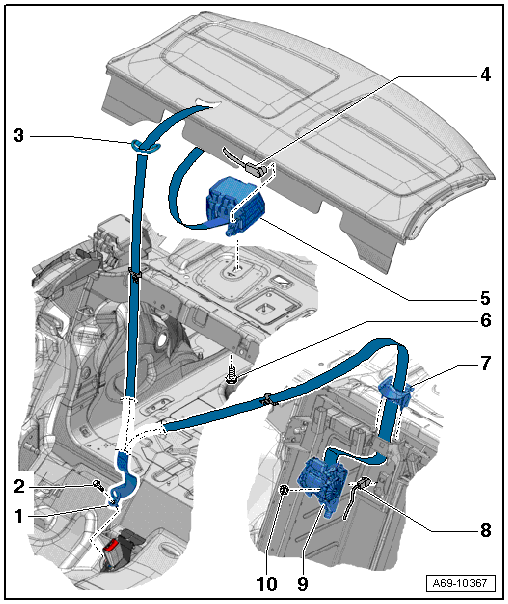

- Rear Center Belt Anchor
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, RIGHT REAR SEAT BELT LATCH WITH REAR BELT END FITTING IN THE CENTER .
- Bolt
- Tightening specification, refer to OVERVIEW - REAR SEAT BELT LATCH .
- Rear Center Belt Guide
- For versions equipped with a fixed rear seat backrest
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, CENTER REAR SEAT BELT GUIDE, FIXED REAR SEAT BACKREST .
- Connector
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Automatic Belt Retractor
- For versions equipped with a fixed rear seat backrest
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Removing and installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING, CENTER REAR THREE-POINT SEAT BELT, FIXED REAR SEAT BACKREST .
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Rear Center Belt Guide
- For vehicles equipped with a folding rear seat backrest
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, CENTER REAR SEAT BELT GUIDE, FOLDING REAR SEAT BACKREST .
- Connector
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Automatic Belt Retractor
- For vehicles equipped with a folding rear seat backrest
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Removing and installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING, CENTER REAR THREE-POINT SEAT BELT, FOLDING REAR SEAT BACKREST .
- Nut
- 45 Nm
- If it was removed because of an accident, replace the nut
