Overview - Rear Seat Belt Latch

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

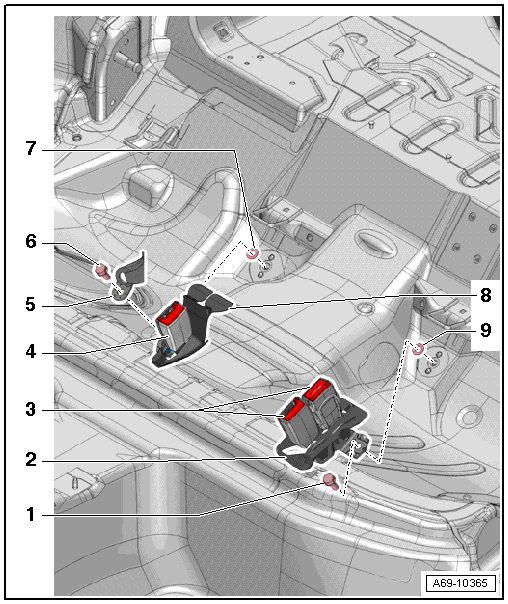

Fig 1: Overview Of Rear Seat Belt Latch

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 45 Nm
- Replace
Belt Latch Cover
Left Seat Belt Latch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, LEFT REAR SEAT BELT LATCH .
- Always replaced if the belt tensioner has deployed with the belt on
Right Seat Belt Latch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, RIGHT REAR SEAT BELT LATCH WITH REAR BELT END FITTING IN THE CENTER .
- Always replaced if the belt tensioner has deployed with the belt on
Rear Center Belt Anchor
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, RIGHT REAR SEAT BELT LATCH WITH REAR BELT END FITTING IN THE CENTER .
Bolt
- 45 Nm
- Replace
Seal
Belt Latch Cover
Seal
