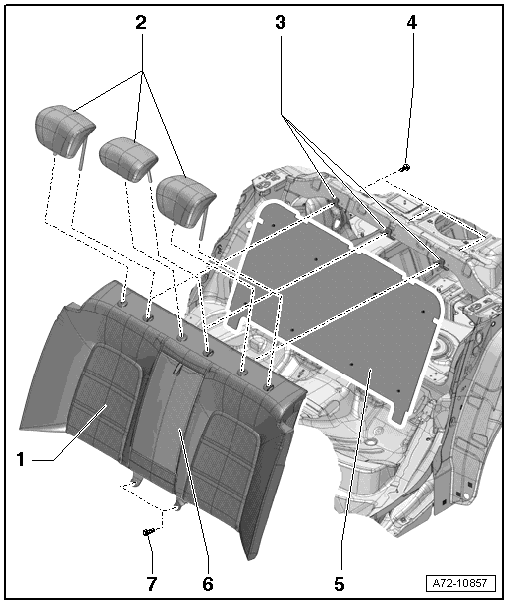

Overview - Rear Seat Backrest, Fixed Rear Seat Backrest
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Fixed Rear Seat Backrest
- Equipment levels
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Head Restraint
- Overview. Refer to OVERVIEW - HEADREST AND HEADREST GUIDE .
- Mounts
- each mounted to the body by 2 rivets
- Bolt
- 30 Nm
- Quantity: 3
- Rear Panel Trim
- Removing and installing. Refer to REAR PANEL TRIM PANEL, REMOVING AND INSTALLING .
- Center Armrest
- Overview. Refer to OVERVIEW - CENTER ARMREST AND BACKREST COVER WITH TRIM, FIXED REAR SEAT BACKREST .
- Bolt
- 33 Nm
- Quantity: 2
