Overview - Rear Seat Backrest, Divided Rear Seat Backrest
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

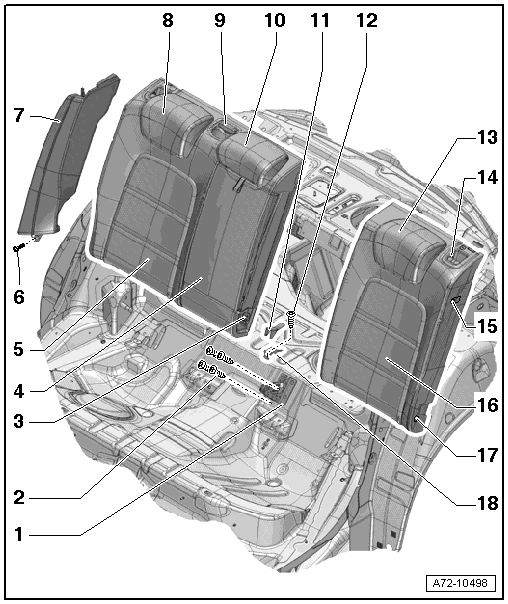

The backrest is divided into 2/3 on the right and 1/3 on the left.
- Center Support
- Removing and installing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .
- Bolts
- Quantity: 4
- 16.5 Nm
- Inner Bracket
- Quantity: 2
- Removing and installing. Refer to INNER BRACKET, REMOVING AND INSTALLING .
- Center Armrest
Versions with pass-through door
- Overview. Refer to OVERVIEW - CENTER ARMREST, CENTER ARMREST WITH PASS-THROUGH COVER .
Versions with storage compartment (armrest with lockable cover)
- Overview. Refer to OVERVIEW - CENTER ARMREST, CENTER ARMREST AND STORAGE COMPARTMENT, LOCKABLE STORAGE COMPARTMENT .
- The center armrest and storage compartment can only be removed and installed separately
Versions without storage compartment (armrest cover and trim)
- Overview. Refer to OVERVIEW - CENTER ARMREST, CENTER ARMREST AND BACKREST COVER WITH TRIM .
- The center armrest as well as the backrest cover and trim can only be removed and installed separated.
- Overview. Refer to OVERVIEW - CENTER ARMREST, CENTER ARMREST WITH PASS-THROUGH COVER .
- 2/3 Right Backrest
Vehicles with:
- Without center armrest and storage compartment and without center armrest and pass-through cover
- with the center armrest and storage compartment
- with center armrest and pass-through cover
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST .
- Bolt
- 9 Nm if equipped with side airbag "with" side airbag
- 3 Nm if equipped with side airbag "without any" side airbag
- Side Cushion
Versions without side airbag
- Removing and installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
Versions with side airbag
- Overview. Refer to OVERVIEW - REAR SIDE AIRBAG .
- Removing and installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
- Right Head Restraint
- Overview. Refer to OVERVIEW - HEADREST AND HEADREST GUIDE .
- Rear Center Belt Guide
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, CENTER REAR SEAT BELT GUIDE, FOLDING REAR SEAT BACKREST .
- Center Head Restraint
- Overview. Refer to OVERVIEW - HEADREST AND HEADREST GUIDE .
- Center Bracket Cover
- Removing and installing. Refer to CENTER STORAGE COMPARTMENT COVER, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Left Head Restraint
- Overview. Refer to OVERVIEW - HEADREST AND HEADREST GUIDE .
- Trim
- for locking with locking cylinder
- Overview. Refer to OVERVIEW - LOCKING MECHANISM .
- Locking Mechanism
- For backrest
- Overview. Refer to OVERVIEW - LOCKING MECHANISM .
- Left 1/3 Backrest
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST .
- Outer Bracket
- Quantity: 2
- Clipped into the backrest shell
- Removing and installing. Refer to OUTER BRACKET, REMOVING AND INSTALLING .
- Securing Bracket
- for the center bracket
- Removing and installing. Refer to SECURING BRACKET, REMOVING AND INSTALLING .
- Backrest shell
- Grommet
- Bolt - 15 Nm
- Washer
