Seat Height Adjustment Motor, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Clean the threaded bolt holes for self-locking nuts, for example using a thread tap.

-- Replace all self-locking bolts.

-- Tighten the adjusting spindle -1- for the seat angle adjustment motor (preset by the manufacturer) with the bolt -2-.

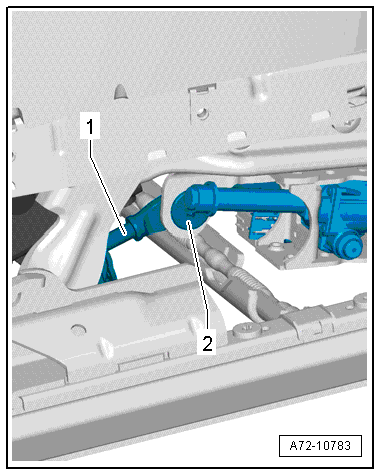

Fig 1: Removing/Installing Bolt For Adjusting Spindle
GWWA72-10783Courtesy of AUDI OF AMERICA, LLC

-- Do not damage bushing -1- when inserting the bolt.

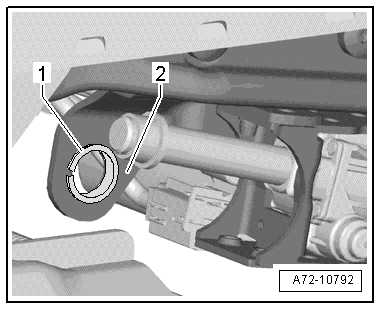

Fig 2: Identifying Bushing -1-, Bearing Area -2-
GWWA72-10792Courtesy of AUDI OF AMERICA, LLC

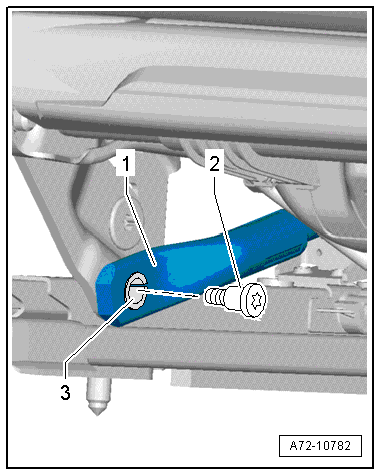

Fig 3: Adjusting Spindle/Seat Pan Bolting Torque Must Be Relieved
GWWA72-10782Courtesy of AUDI OF AMERICA, LLC
CAUTION:

If tension is not released when loosening or tightening the threaded connection between the adjusting spindle and the seat pan, the threaded hole in the seat pan will be damaged or destroyed.

There is a risk of damaging the threads on the bolt -2-.

  • The bolt on the adjusting spindle has left-hand threads.

-- Do not damage the bushing -3- when inserting the bolt -2-.

CAUTION:
  • The bushings cannot be replaced with workshop materials.
  • If the bushings are damaged, replace the corresponding components.

Installation is performed in reverse order of removal, while noting the following:

NOTE:

Make sure the connectors are installed correctly and are secure.

WARNING:

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

-- Connect the battery ground cable with the ignition turned on. Refer to Connecting .

NOTE:

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again. Refer to Vehicle Diagnostic Tester.
