Battery, Disconnecting And Connecting: Connecting
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Tightening specifications: Refer to OVERVIEW - BATTERY for the Sedan. Refer to OVERVIEW - BATTERY for the Avant.

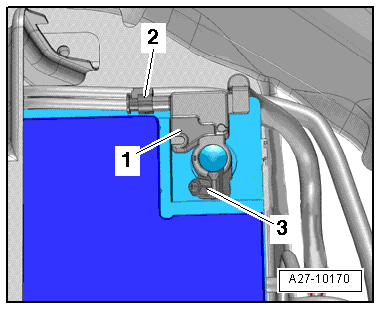

-- Disconnect the connector -2- from the Battery Monitoring Control Module -J367- -item 1-.
-- To connect, connect the battery ground cable terminal by hand to the battery negative terminal "-" and tighten nut -3-
-- Reconnect the connector to the Battery Monitoring Control Module -J367-.
When the battery is connected, the following steps must be performed:
- Activate the power window regulator one-touch up/down function. Refer to the Owner's Manual.
- Check DTC memories of all control modules and erase "Undervoltage" DTC if necessary using the Vehicle Diagnostic Tester.
NOTE:
After connecting the power supply, the ABS warning lamp may only go out after the vehicle has been driven a few yards.
