Right/Left Front Seat Ventilation Control Module -J799- / -J800- (Integrated Seat Heating Function), Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Turn on the ignition.
-- Disconnect the battery ground cable with the ignition turned on. Refer to Disconnecting .
-- Remove the front seat:
- Standard seat and Sport seat (manual) FRONT SEAT, REMOVING AND INSTALLING, MANUAL .
-- Attach the front seat to the Engine/Transmission Holder - Seat Repair FixtureVAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

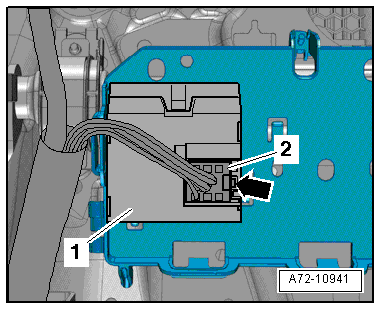

-- Disconnect the connector -2- from the right front seat ventilation control module -J799- / left front seat ventilation control module -J800- -item 1- by pressing the release button -arrow-.

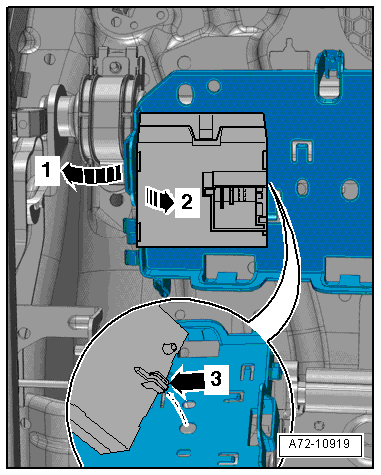

-- Release the strap -arrow 1- using the Trim Removal Wedge 3409.
-- Pivot the control module downward -arrow 2-.
-- Release the tab on the control module -arrow 3- on the mount.
-- Remove control module.
