Fuel Delivery Unit, Removing And Installing (A5 From My 2012, A4 From My 2013, Vehicles With Fwd And AWD): Installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Tightening specification. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .

NOTE:

Replace the sealing ring and the union nut.

Be careful not to bend the floater arm on the Fuel Level Sensor -G- when installing the fuel delivery unit.

Make sure the fuel hoses are secure.

-- Make sure the Ground (GND) wire -4- on the fuel pressure regulator and the sealing flange is securely attached -arrows-.

Fig 1: Fuel Delivery Unit Connector

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the following connectors are secure:

The connectors -1, 2 and 3- must be connected securely to the locking flange.

-- Pull on the connector to make sure it is locked secure.

-- Insert the fuel gauge/fuel delivery unit in the fuel tank.

-- Stretch the new sealing ring over the locking flange and insert it in the groove on the fuel tank.

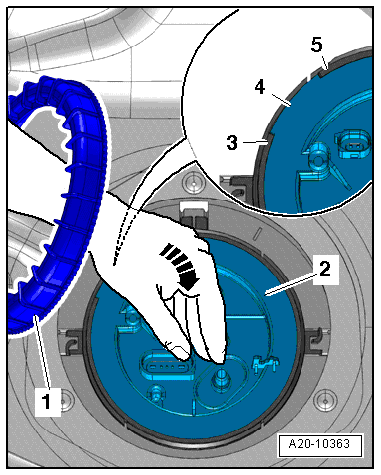

-- Place the union nut -1- on your left arm and push the locking flange -2- forcefully into installation position with your left hand -arrow-.

Fig 2: Place Union Nut On Your Left Arm And Push Locking Flange Forcefully Into Installation Position With Your Left Hand

Courtesy of AUDI OF AMERICA, LLC

The tab -4- on locking flange must be between the tabs -3 and 5- on the threaded ring.

-- Slide the union nut -1- off your left arm using your right hand while your left hand keeps holding the locking flange -2- down firmly -arrow-.

Fig 3: Press Locking Flange Down Firmly

Courtesy of AUDI OF AMERICA, LLC

-- Position the union nut -1- with your right hand so the double ridge -5- on the ribs is over the lug -3- on the locking flange (approximately "10 o'clock" position). This makes sure the union nut engages at the beginning of the threads immediately when tightening it -4-.

-- Press the locking flange down firmly in direction of -arrow-.

Fig 4: Turn Union Nut Approximately 480Degrees With Your Right Hand

Courtesy of AUDI OF AMERICA, LLC

-- Turn the union nut approximately 480° with your right hand until the double ridge -1- is in approximately "2 o'clock position" while keeping the locking flange pressed down firmly with your left hand.

Fig 5: Press the locking flange down firmly when tightening the union nut so it does not rotate too

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of the locking flange threaded connection leaking.

Press the locking flange down firmly when tightening the union nut so it does not rotate too.

-- Tighten the union nut using Fuel Tank Sender Unit Tool T40068A.

Check: The double ridge -1- must now be between "7 and 8 o'clock".

Fig 6: Double Ridge -1- Must Now Be Between "7 And 8 O'clock"
Courtesy of AUDI OF AMERICA, LLC

-- Install the fuel lines -1 and 2- until they click into place.

Fig 7: View Of Fuel Delivery Unit Fuel Line Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Press the fuel line on again and pull to make sure the connection is engaged correctly.

-- Connect the connectors.

-- Install the sealing flange cover. Refer to Figure.

-- Install the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Connect the battery while doing so, follow all steps after connecting the battery. Refer to BATTERY CONNECTING .

-- After installing fuel delivery unit, fill vehicle with at least 5 liters (5.28 qts) of fuel.

-- Vehicles with auxiliary heater: To vent the fuel line to the auxiliary heater metering pump, run for 10 minutes at wide open throttle (WOT).

Fig 8: Identifying Cover Bolts For Locking Flange

Courtesy of AUDI OF AMERICA, LLC
