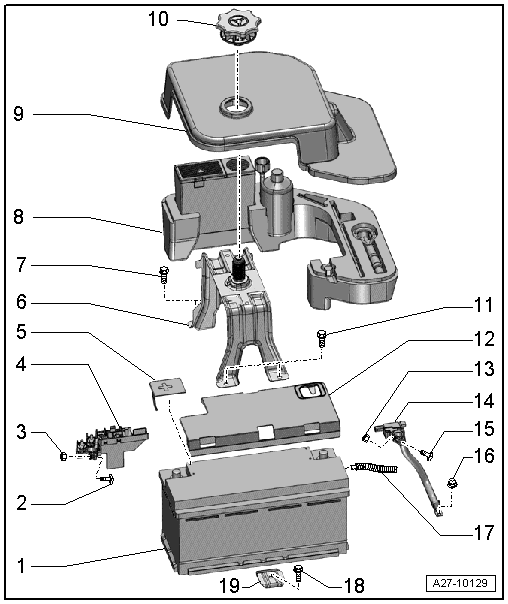

Overview - Battery (Sedan)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
- Battery
- In the luggage compartment in the spare wheel well
- Removing and installing. Refer to BATTERY, REMOVING AND INSTALLING .
- Screw
- Nut
- 6 Nm
- Fuse Panel A -SA-
- Disconnecting and connecting. Refer to BATTERY, REMOVING AND INSTALLING .
- Removing and installing. Refer to Fuse Panel A -SA- IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
- Positive Terminal Cover
- Retainer
- For the vehicle tool kit cover
- Bolt
- 18 Nm
- Mount
- For the tool kit
- Cover
- For the tool kit
- Nut
- 4 Nm
- For the vehicle tool kit cover
- Screw
- 18 Nm
- Negative Terminal Cover
- Nut
- 6 Nm
- Ground Wire with Battery Monitoring Control Module -J367-
- Disconnecting and connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
- Screw
- Nut
- 20 Nm
- Hose for the Central Venting System
- Bolt
- 18 Nm
- Retaining Bracket
