Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, AVANT: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right luggage compartment trim panel, refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL (SEDAN) .

The Cellular Telephone Amplifier -R86- is clipped into a bracket.

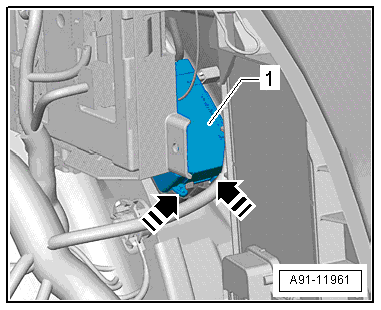

Fig 1: Cellular Telephone Amplifier Is Clipped Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Push the tabs inward and remove the Cellular Telephone Amplifier -R86- -1-.

-- Release and disconnect all the connectors from the Cellular Telephone Amplifier -R86- -1-.
