Overview - Luggage Compartment Side Trim Panel (Sedan)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

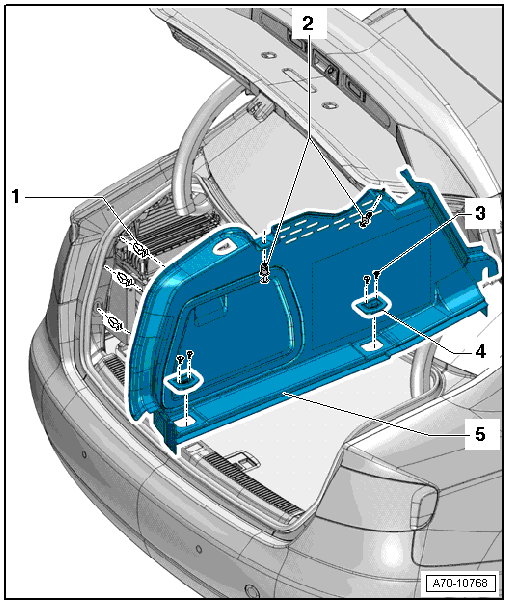

Fig 1: Overview Of Luggage Compartment Side Trim Panel (Sedan)

Courtesy of AUDI OF AMERICA, LLC

Clip
- Quantity: 3
- Insert in the trim panel
- Replace if damaged or deformed
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool T40280.
Expanding Clips
- Quantity: 2
Bolt
- Quantity: 4
- 6 Nm
Tie-Down Eye
- Quantity: 2
- Removing and installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
Luggage Compartment Side Trim Panel
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING (SEDAN) .

Fig 2: Removing Bolts And Retaining Hook

Courtesy of AUDI OF AMERICA, LLC

-- Versions with hooks: Tighten the screws -arrows- to 1.5 Nm.
