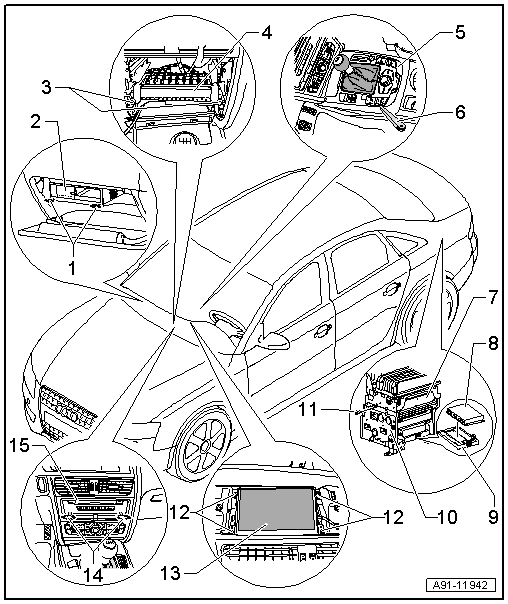

Component Location Overview - Infotainment System, USA, Through 11/03/2008
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Radio Removal Tool T10057
- External Audio Source Connection -R199-, AMI
- Connector Assignments AMI (MMI), refer to CONNECTOR ASSIGNMENT AMI, MMI, THROUGH 10/31/2008 .
- Removing and Installing, (AMI), refer to External Audio Source Connection -R199-, REMOVING AND INSTALLING, AMI .
External Audio Source Connection -R199-, AUX IN
- AUX-IN connector assignment, refer to AUX IN CONNECTOR ASSIGNMENT .
- AUX IN, Removing and Installing, refer to External Audio Source Connection -R199-, REMOVING AND INSTALLING, AUX IN .
- Bolt
- 2 Nm
- Quantity: 2
- Screw Bracket
- 2 Nm
- Quantity: 2
- Front Information Display Control Head Control Module -J523-
- Connector assignment (through 11/03/2008), refer to MMI CONNECTOR ASSIGNMENT, THROUGH 11/03/2008 .
- Removing and installing (through 11/03/2008), refer to Front Information Display Control Head Control Module -J523-, REMOVING AND INSTALLING, THROUGH 11/03/2008 .
- Multimedia System Control Head -E380-
- Connector assignment, refer to Multimedia System Control Head -E380- CONNECTOR ASSIGNMENT .
- Removing and installing, refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING
- Trim Removal Wedge 3409
- Radio -R-
- Connector assignment (through 11/03/2008), refer to Radio -R- CONNECTOR ASSIGNMENT, MMI, THROUGH 11/03/2008. .
- Removing and installing (through 11/03/2008), refer to Radio - R-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008 .
- Satellite Radio -R146-
- Connector assignment (through 11/03/2008), refer to Satellite Radio -R146- CONNECTOR ASSIGNMENT, MMI, USA, THROUGH 11/03/2008 .
- Removing and installing (through 11/03/2008), refer to Satellite Radio -R146-, REMOVING AND INSTALLING, THROUGH 11/03/2008 .
- Bracket
- Rack
- Bolt
- 2 Nm
- Quantity: 2
- Bolt
- 2 Nm
- Quantity: 4
- Front Information Display Control Head -J685-
- Connector assignment, MMI (through 11/03/2008), refer to DISPLAY CONNECTOR ASSIGNMENT, MMI THROUGH 11/03/2008. .
- Removing and installing, refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Radio Removal Tool T10057
- CD Changer -R41-
- Pin assignment (MMI), refer to CD Changer -R41- CONNECTOR ASSIGNMENT, MMI .
- Removing and installing (through 11/03/2008), refer to CD Changer -R41-, REMOVING AND INSTALLING, THROUGH 11/03/2008 .
