Connector Assignment Ami, MMI, Through 10/31/2008

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

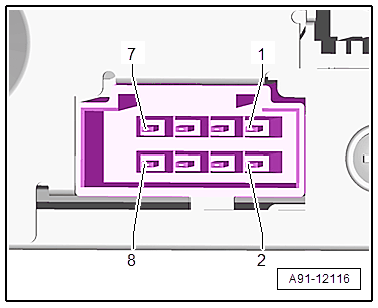

Fig 1: 8-Pin Connector -T8aa-

Courtesy of AUDI OF AMERICA, LLC

8-Pin Connector -T8aa-
MOST bus

NOTE:

Unlisted connector terminals are not assigned.

Fig 2: 1 - 8-Pin Connector -T8g-

Courtesy of AUDI OF AMERICA, LLC

1 -

Terminal 31

2 -

Terminal 30

4 -

Terminal 31

5 -

Ring-break Diagnostic Cable

Fig 3: 2 - MOST Bus

Courtesy of AUDI OF AMERICA, LLC

Input
Output
